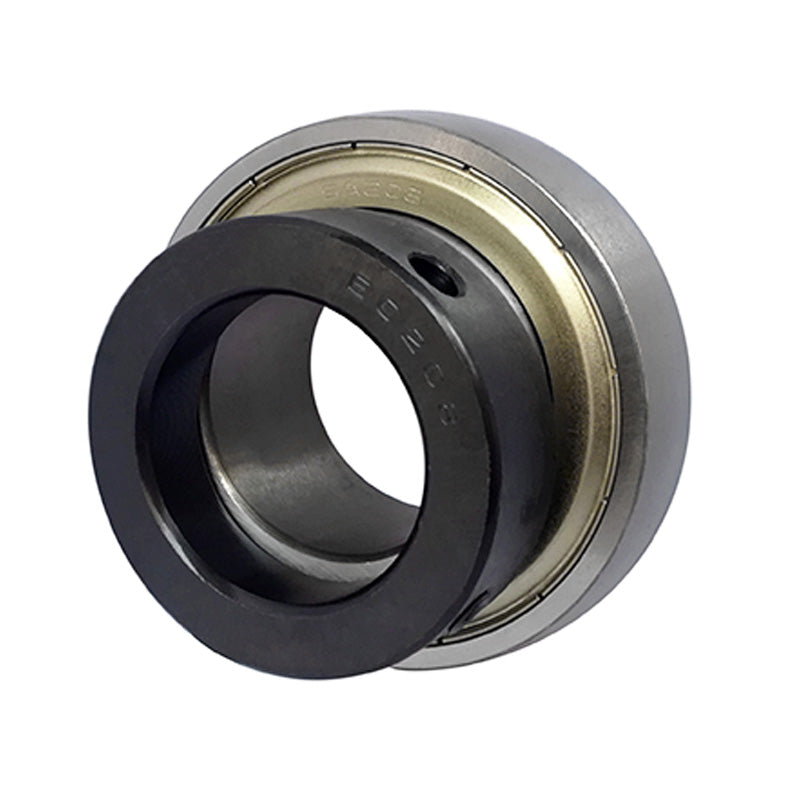

• RHP 1235-1-1/4ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
1 1

SKU: 1235-1.1/4ECG-RHP

RHP 1235-1-1/4ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter

RHP 1235-1-1/4ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
$49.60 ex VAT
$49.60 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.22
20+ $31.36
30+ $30.98
40+ $30.61
50+ $30.24
75+ $29.86
100+ $28.00
200+ $27.62
250+ $27.25
500+ $26.88
1000+ $26.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1200 ECG Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, re-lubricatable
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
72mm
Style:
1235
Technical
Bore 1-1/4 inch
D 2.8346 inch
C 0.669 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
r 0.039 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 0.58 kg
