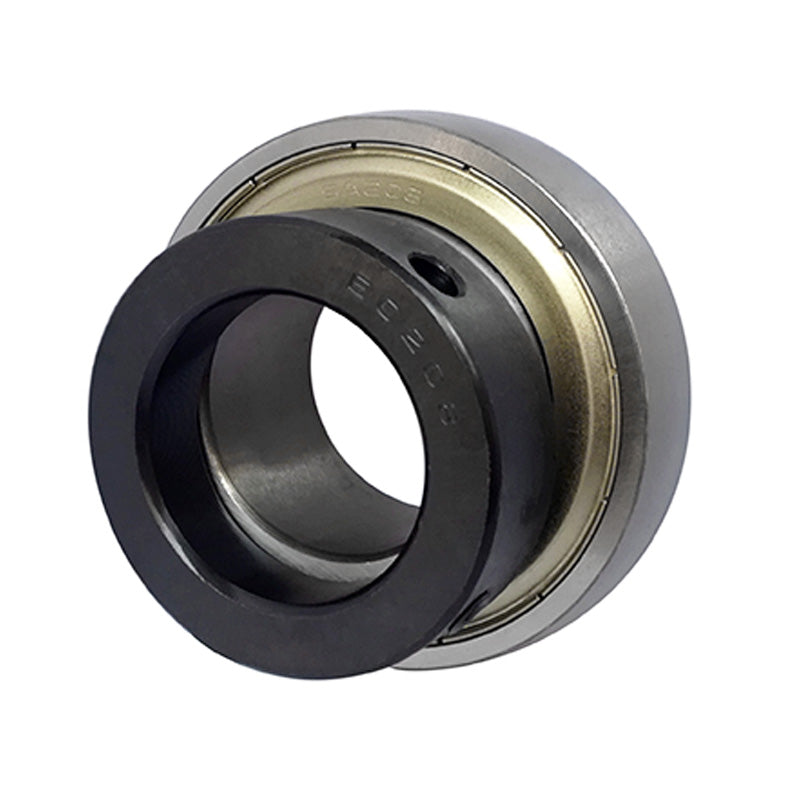

• RHP 1240-1-1/2ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
1 1

SKU: 1240-1.1/2ECG-RHP

RHP 1240-1-1/2ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter

RHP 1240-1-1/2ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
$59.18 ex VAT
$59.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $39.64
20+ $37.42
30+ $36.97
40+ $36.52
50+ $36.08
75+ $35.63
100+ $33.41
200+ $32.96
250+ $32.52
500+ $32.07
1000+ $31.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1200 ECG Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, re-lubricatable
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Style:
1240
Technical
Bore 1-1/2 inch
D 3.1496 inch
C 0.709 inch
B2 1.718 inch
s1 0.435 inch
d2 2.374 inch
r 0.039 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 0.73 kg
