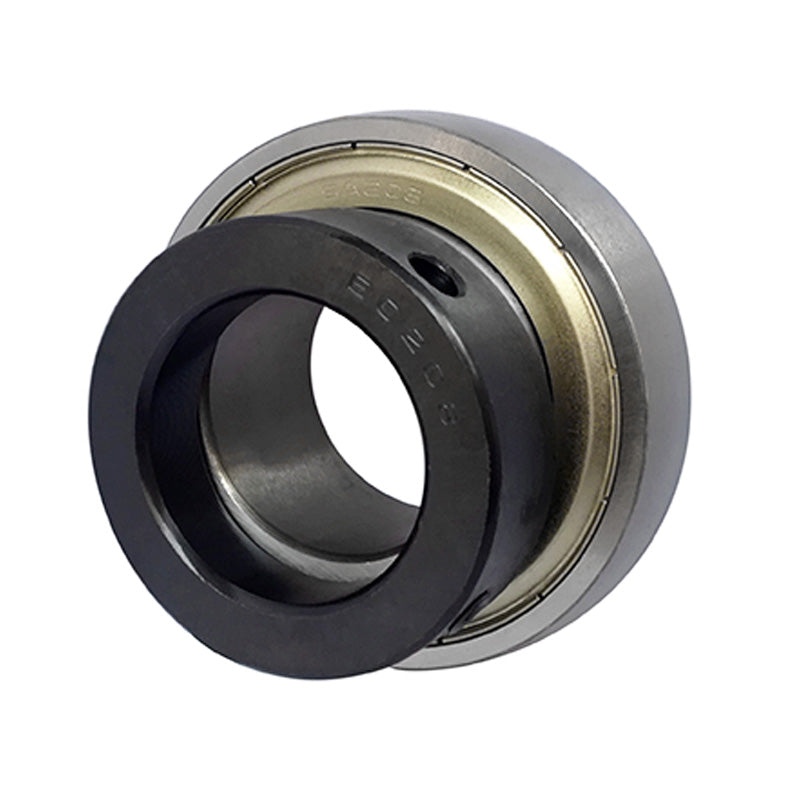

• RHP 1240-40EC Spherical Outside Flat Back Collar Bearing Insert 40mm Bore 80mm Outside Diameter
1 1

SKU: 1240-40EC-RHP

RHP 1240-40EC Spherical Outside Flat Back Collar Bearing Insert 40mm Bore 80mm Outside Diameter

RHP 1240-40EC Spherical Outside Flat Back Collar Bearing Insert 40mm Bore 80mm Outside Diameter
$55.01 ex VAT
$55.01 ex VAT
Sale Sold out

In stock

Price Break
10+ $36.85
20+ $34.78
30+ $34.36
40+ $33.95
50+ $33.54
75+ $33.12
100+ $31.05
200+ $30.64
250+ $30.22
500+ $29.81
1000+ $28.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Style:
1240
Technical
Bore 40mm
D 80mm
C 18mm
B2 43.64mm
s1 11.05mm
d2 60.3mm
r 1mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 0.73 kg
