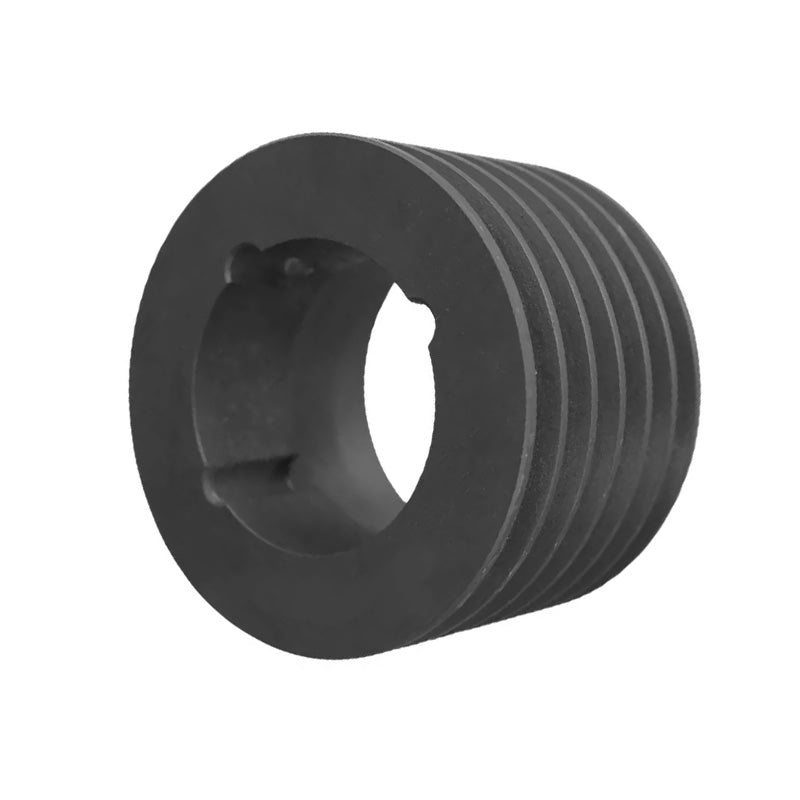

• 125X6SPA 125mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 125X6SPA 125mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 125SPA6-MB

125X6SPA 125mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

125X6SPA 125mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$39.50 ex VAT
$39.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.46
5+ $24.97
9+ $24.68
19+ $24.38
49+ $24.08
74+ $23.78
99+ $22.30
199+ $22.00
249+ $21.70
499+ $21.41
999+ $20.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SPA Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184.
Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better.
Pulleys with a weight of 100kg and above are dynamically balanced (two planes).
All pulleys with a weight less than 100kg are statically machine balanced (one plane).
Suitability: Suitable for use with A section, AX Section, SPA and XPA section V-Belts
Benefits: Cost effective replacement
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
130.5mm
Pitch Diameter:
125mm
Max Bore:
50mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 125mm
Overall Outer Diameter C 130.5mm
Max Bore A 50mm
Outer Hub Diameter E mm
Overall Sheave Depth F 95mm
Bush Seat Length G 32mm
Inner Recess Length H 31.5mm
