SKU: 126085X/126136XC-GAMET

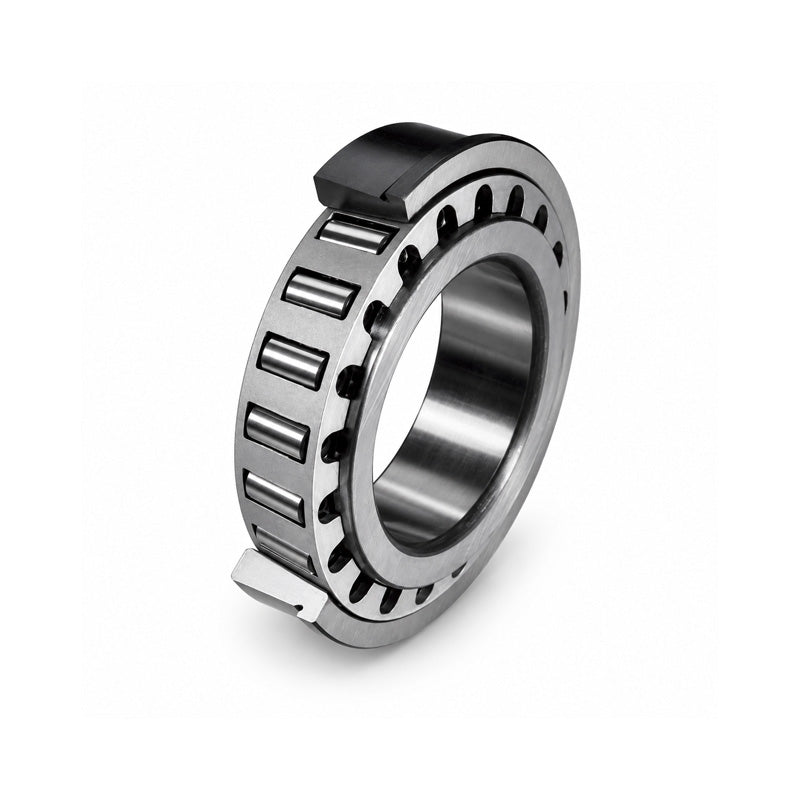

Gamet 126085X/126136XC Super Precision Tapered Roller Bearing Flanged Cup Type 85.725x136.525x34mm - Allow 2-3 Days
Gamet 126085X/126136XC Super Precision Tapered Roller Bearing Flanged Cup Type 85.725x136.525x34mm - Allow 2-3 Days
Regular price
$2,273.55
ex VAT
Regular price
Sale price
$2,273.55
ex VAT
In stock
Price Break
4+
$1,625.32
9+
$1,539.77
19+
$1,454.23
29+
$1,368.69
39+
$1,334.47
49+
$1,300.25
59+
$1,129.17
69+
$0.00
79+
$0.00
89+
$0.00
99+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Super Precision Tapered Roller Bearing Flanged Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. The flanged cup design enables through boring of the housing for simplicity and accuracy. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 85.725mm
- Outside Diameter:
- 136.525mm
- Width:
- 34mm

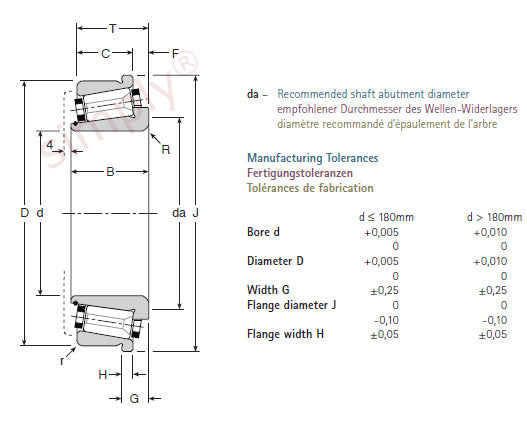

Technical
Technical
| d | 85.725mm |
|---|---|
| D | 136.525mm |
| T | 30.16mm |
| C | 22.22mm |
| B | 34.00mm |
| F | 7.94mm |
| G | 13.50mm |
| H | 5.56mm |
| J | 142.06mm |
| da | 102mm |
| r | 0.80mm |
| R | 2.50mm |
| Radial static stiffness | 99 daN/µ |
| Axial static stiffness | 19 daN/µ |
| Radial basic rating 10000hrs@500rpm | 2335 daN |
| Axial basic rating 10000hrs@500rpm | 1425 daN |
| Max speed | 4900 rpm |
| Weight | 1.600kg |
| Cone | 126085X |
| Cup | 126136XC |
