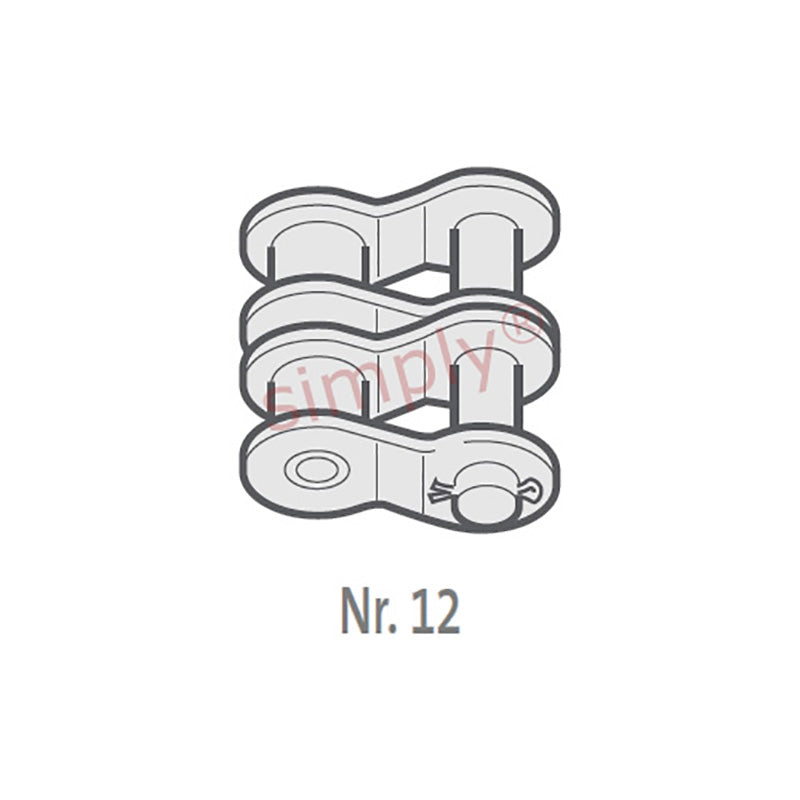

• Branded 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
1 1

SKU: 12B-2-NO12-MB

Branded 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch

Branded 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
$7.80 ex VAT
$7.80 ex VAT
Sale Sold out

Equivalent to: 12B-2-OL

In stock

Price Break
2+ $5.22
5+ $4.93
10+ $4.87
29+ $4.81
49+ $4.75
75+ $4.69
100+ $4.40
200+ $4.34
250+ $4.28
500+ $4.22
1000+ $4.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
19.05mm = 0.75 (3/4) inch
Technical
Pitch (A) 0.75 inch
Pitch (A) 19.05mm
Inside Width min (B) 11.68mm
Roller Diameter max (C) 12.07mm
Plate Height max (D) 16.1mm
Plate Width Inner max (E) 1.8mm
Plate Width Outer max (F) 1.8mm
Pin Diameter max (G) 5.72mm
Pin Length max (H2) 42.1mm
Connecting Link Extension max (J) 1.5mm
Transverse Pitch nom (K) 19.46mm
ISO606 Tensile Strength min 57800 N
Weight 0.015kg/m
