SKU: 12B-2-NO26-MB
Branded 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Branded 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
$5.95
ex VAT
Regular price
Sale price
$5.95
ex VAT
Equivalent to: 12B-2-CL
In stock
Price Break
2+
$3.98
5+
$3.76
10+
$3.72
29+
$3.67
49+
$3.63
75+
$3.58
100+
$3.36
200+
$3.31
250+
$3.27
500+
$3.22
1000+
$3.13
Quantity
Couldn't load pickup availability
Description
Description

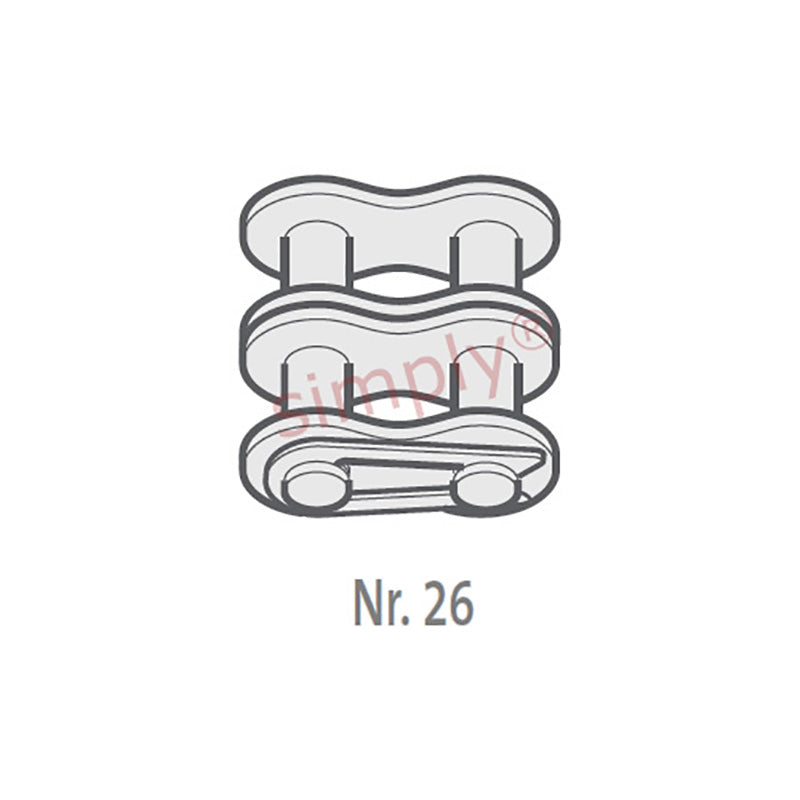

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 42.1mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
