Renold SD 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SD 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
$7.17
ex VAT
Regular price
Sale price
$7.17
ex VAT
In stock
Price Break
2+
$4.80
5+
$4.53
10+
$4.48
29+
$4.43
49+
$4.37
75+
$4.32
100+
$4.05
200+
$4.00
250+
$3.94
500+
$3.89
1000+
$3.78
Quantity
Couldn't load pickup availability
Description
Description

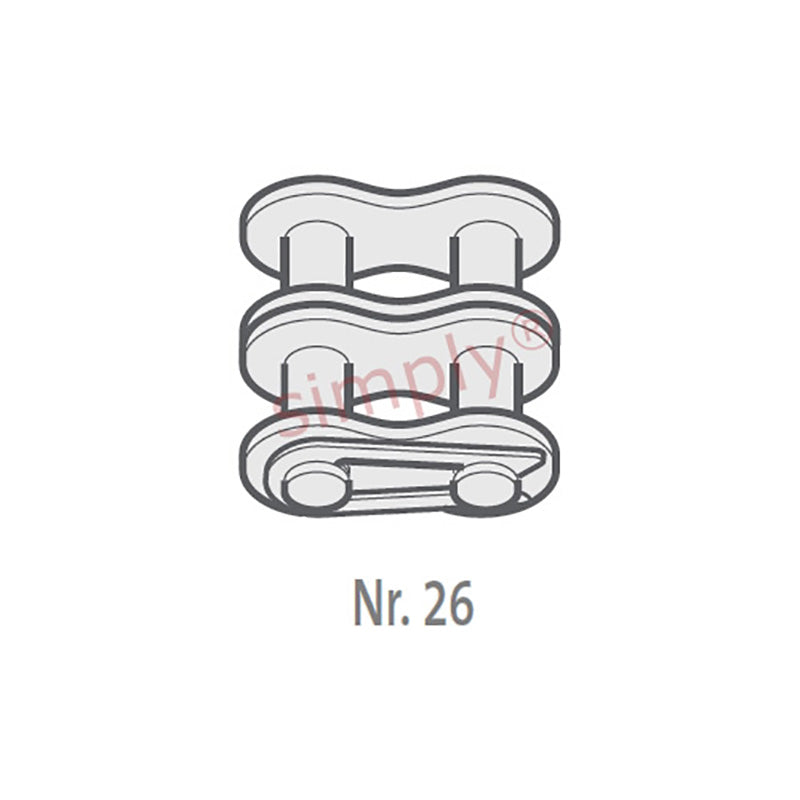

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 42.1mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
