SKU: 12B-2-SYN-NO30-RENOLD
Renold Synergy 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $52.21 ex VAT
- Sale price
- $52.21
- Regular price
-
Not in stock
Quantity Price Breaks
2
$46.47
5
$43.86
10
$43.33
29
$42.81
49
$42.29
75
$41.77
100
$39.16
200
$38.64
250
$38.11
500
$37.59
1000
$36.55
SKU:
12B-2-SYN-NO30-RENOLD
Renold Synergy 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $52.21 ex VAT
- Sale price
- $52.21
- Regular price
-
Description

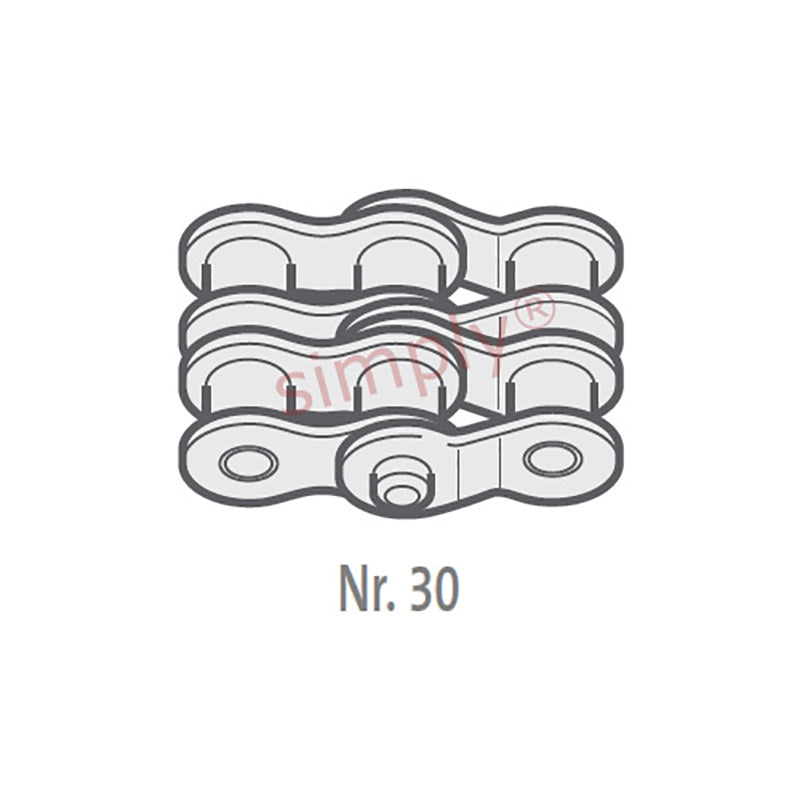

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 41.4mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 19.46mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
