SKU: 12B-3-NO26-MB
Branded 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Branded 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
$5.39
ex VAT
Regular price
Sale price
$5.39
ex VAT
Equivalent to: 12B-3-CL
In stock
Price Break
2+
$3.61
5+
$3.41
10+
$3.37
29+
$3.33
49+
$3.29
75+
$3.25
100+
$3.05
200+
$3.00
250+
$2.96
500+
$2.92
1000+
$2.84
Quantity
Couldn't load pickup availability
Description
Description

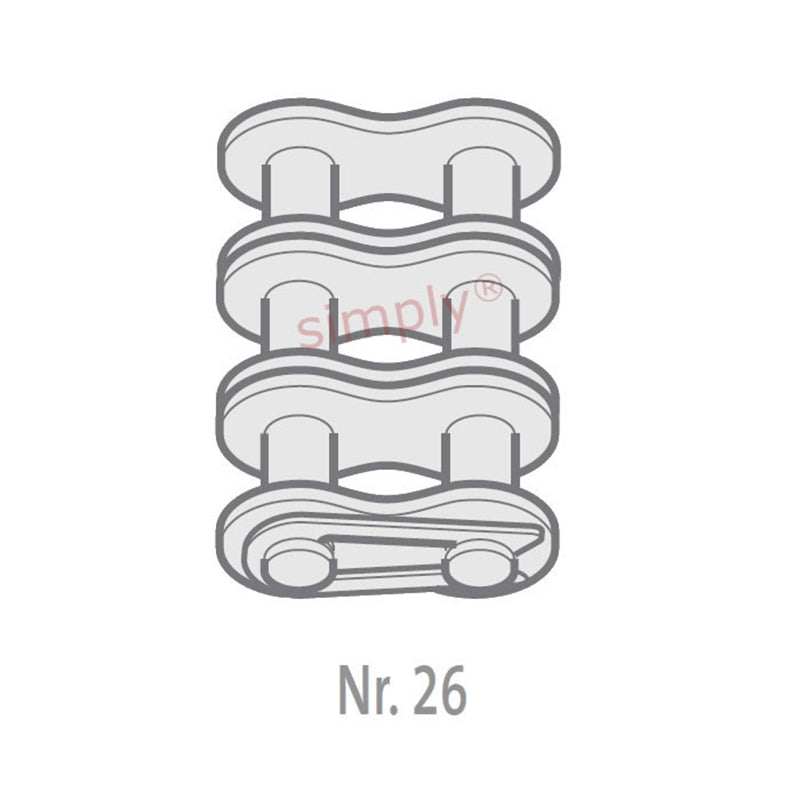

Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H3) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
