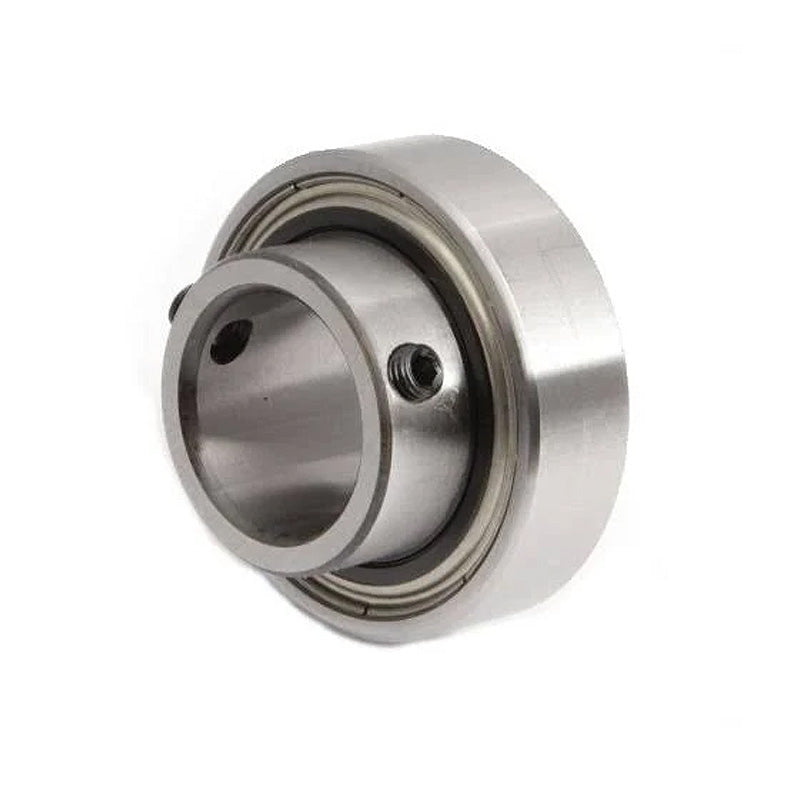

• RHP 1325-1 Parallel Outer Flat Back Bearing Insert 1 inch Bore 52mm Outside Diameter
1 1

SKU: 1325-1-RHP

RHP 1325-1 Parallel Outer Flat Back Bearing Insert 1 inch Bore 52mm Outside Diameter

RHP 1325-1 Parallel Outer Flat Back Bearing Insert 1 inch Bore 52mm Outside Diameter
$33.07 ex VAT
$33.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $22.15
20+ $20.91
30+ $20.66
40+ $20.41
50+ $20.16
75+ $19.91
100+ $18.67
200+ $18.42
250+ $18.17
500+ $17.92
1000+ $17.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1300 Series: Flat back bearing insert with parallel outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
52mm
Style:
1325
Technical
Bore 1 inch
D 2.0472 inch
C 0.591 inch
B1 1.077 inch
s1 0.298 inch
d1 1.339 inch
M 0.211 inch
r 0.039 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.13 kg
