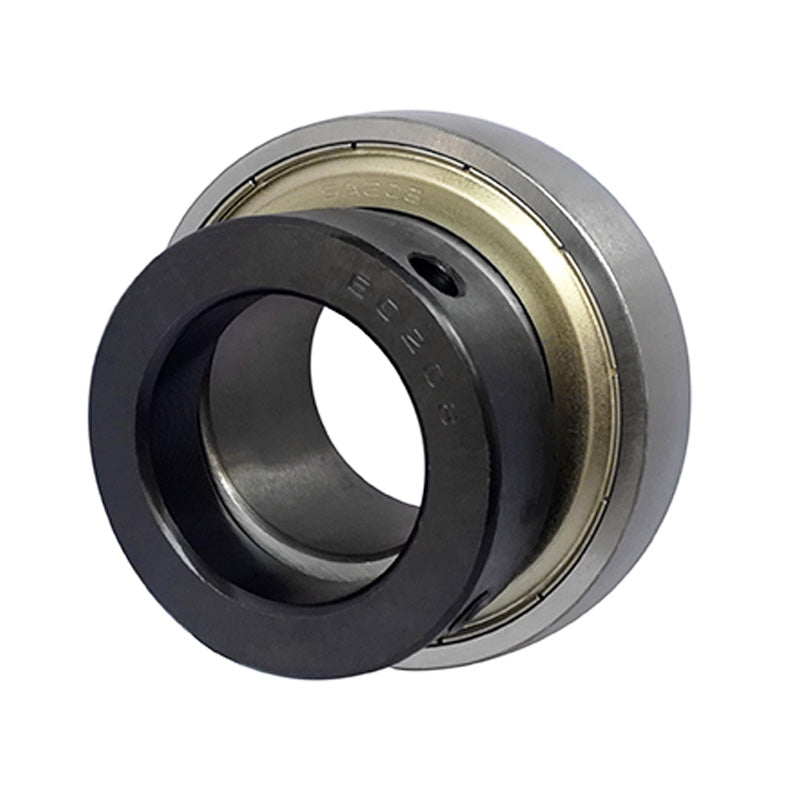

• RHP 1345-45EC Parallel Outside Flat Back Collar Bearing Insert 45mm Bore 85mm Outside Diameter
1 1

SKU: 1345-45EC-RHP

RHP 1345-45EC Parallel Outside Flat Back Collar Bearing Insert 45mm Bore 85mm Outside Diameter

RHP 1345-45EC Parallel Outside Flat Back Collar Bearing Insert 45mm Bore 85mm Outside Diameter
$61.45 ex VAT
$61.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $41.16
20+ $38.85
30+ $38.38
40+ $37.92
50+ $37.46
75+ $37.00
100+ $34.68
200+ $34.22
250+ $33.76
500+ $33.30
1000+ $32.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Style:
1345
Technical
Bore 45mm
D 85mm
C 19mm
B2 43.64mm
s1 11.05mm
d2 63.5mm
r 1mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 0.87 kg
