• Branded 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch
1 1

SKU: 140-1-NO11-MB

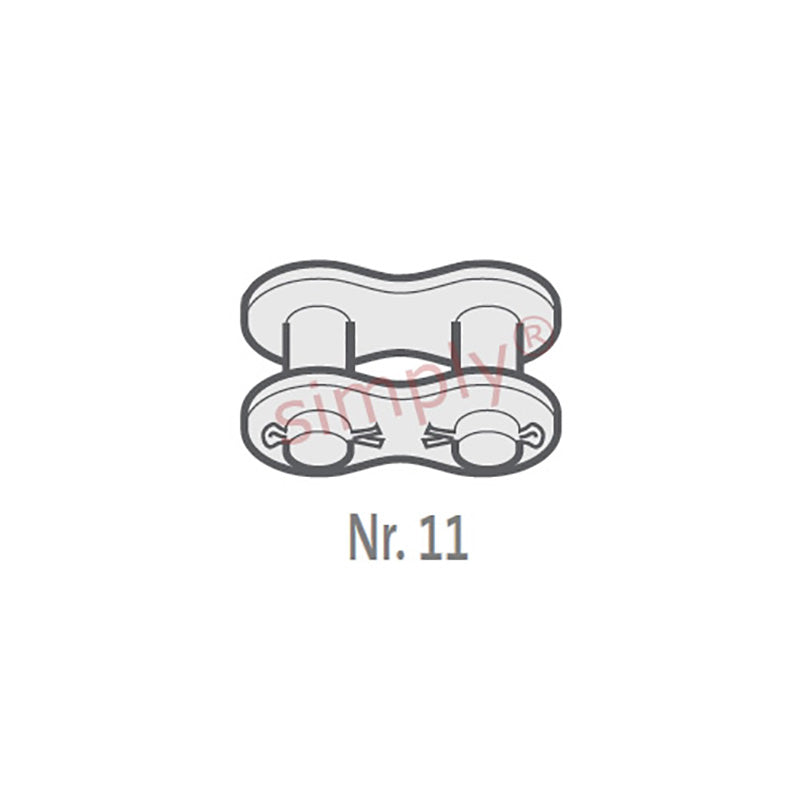

Branded 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch

Branded 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch
$17.63 ex VAT
$17.63 ex VAT
Sale Sold out

Equivalent to: 140-1-CL-COT 140-1-CL

In stock

Price Break
2+ $11.81
5+ $11.15
10+ $11.02
29+ $10.88
49+ $10.75
75+ $10.62
100+ $9.95
200+ $9.82
250+ $9.69
500+ $9.56
1000+ $9.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 25.22mm
Roller Diameter max (C) 25.4mm
Plate Height max (D) 42mm
Plate Width Inner max (E) 5.6mm
Plate Width Outer max (F) 5.6mm
Pin Diameter max (G) 12.7mm
Pin Length max (H1) 54.2mm
Connecting Link Extension max (J) 4.8mm
ISO606 Tensile Strength min 170000 N
Weight 0.397kg/m
