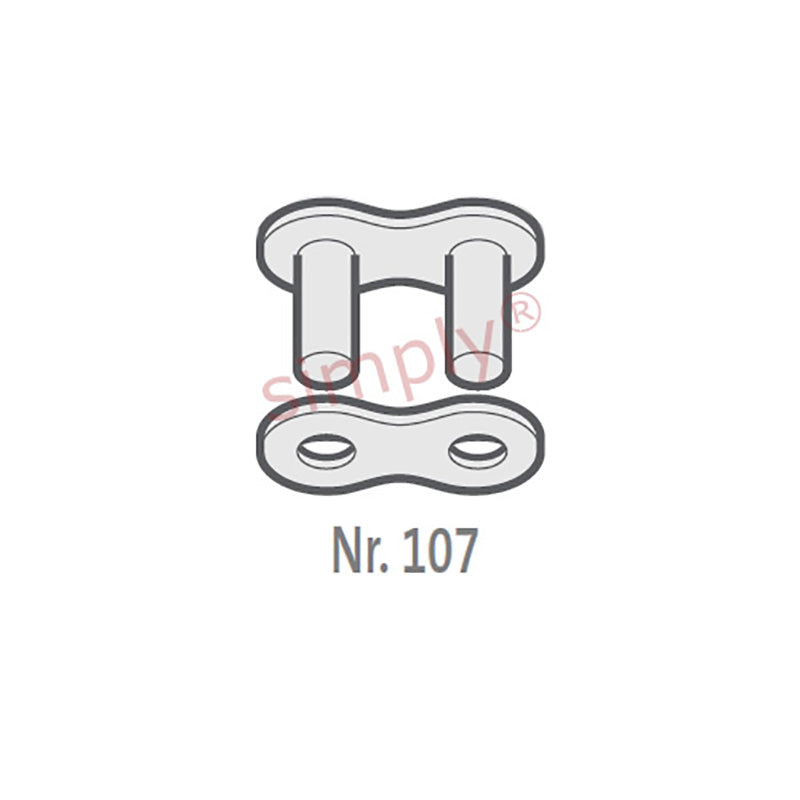

• Renold SD 140-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
  • Renold
1 2

SKU: 140-1-SD-NO107-RENOLD

Renold SD 140-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch

Renold SD 140-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
$39.16 ex VAT
$39.16 ex VAT
Sale Sold out

In stock

Price Break
2+ $26.23
5+ $24.76
10+ $24.46
29+ $24.17
49+ $23.87
75+ $23.58
100+ $22.10
200+ $21.81
250+ $21.51
500+ $21.22
1000+ $20.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 25.22mm
Roller Diameter max (C) 25.4mm
Plate Height max (D) 42mm
Plate Width Inner max (E) 5.6mm
Plate Width Outer max (F) 5.6mm
Pin Diameter max (G) 12.7mm
Pin Length max (H1) 54.2mm
Connecting Link Extension max (J) 4.8mm
ISO606 Tensile Strength min 170000 N
Weight 0.397kg/m
