SKU: 140-1-SYNERGY-10FT-RENOLD

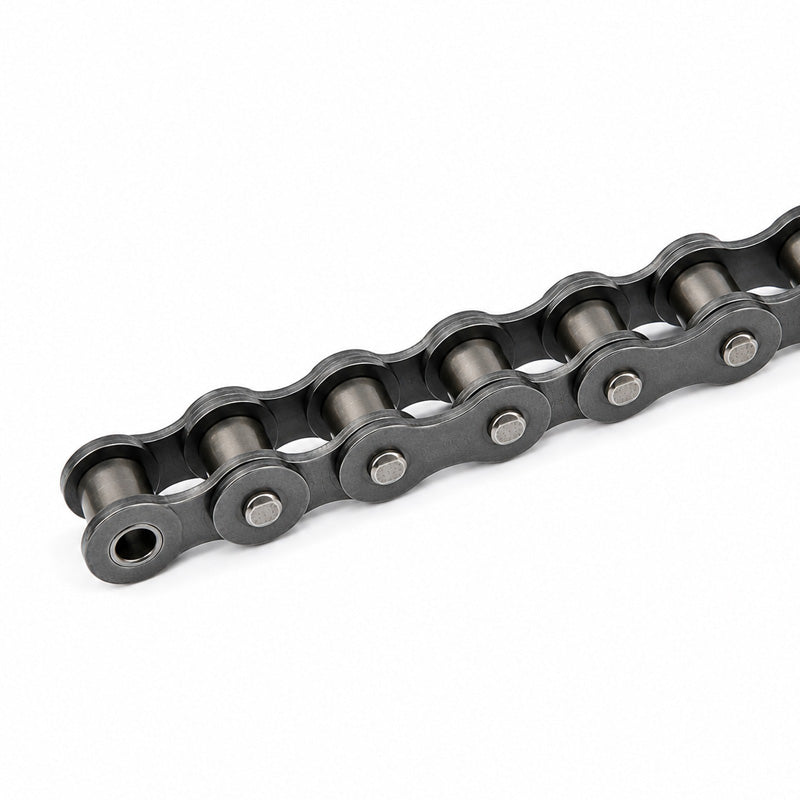

Renold Synergy 140-1 ANSI / AS Simplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
Renold Synergy 140-1 ANSI / AS Simplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
Regular price
$3,386.02
ex VAT
Regular price
Sale price
$3,386.02
ex VAT
Equivalent to: GY140A1
In stock
Price Break
0+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H1) | 52.9mm |
| Connecting Link Extension max (J) | 5.2mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 7.8kg/m |
