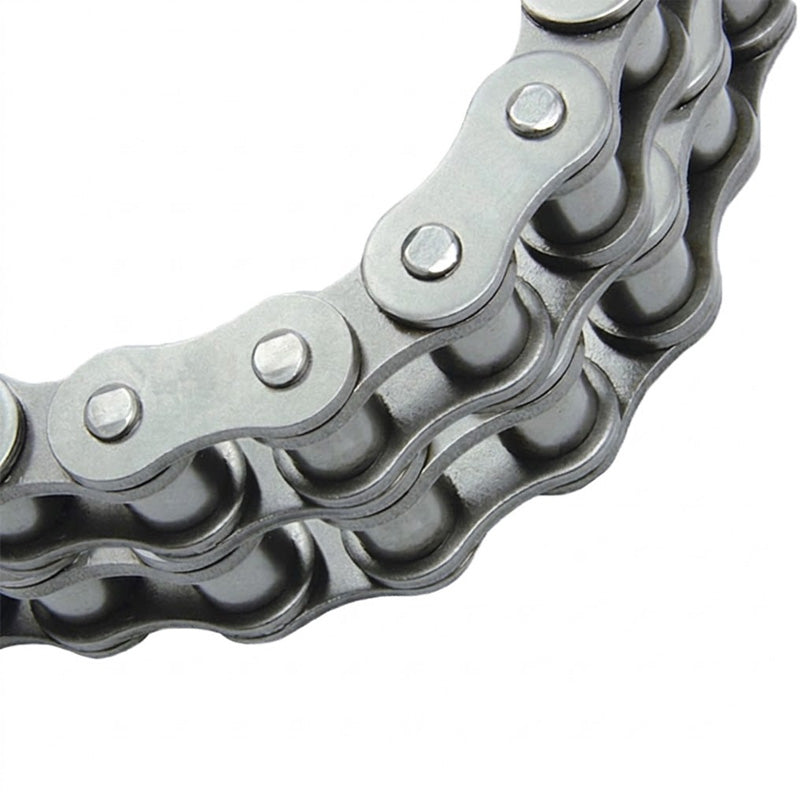

• Branded ANSI/ASA140-2 Duplex Roller Chain 1-3/4 inch Pitch 2.5 Metres
1 1

SKU: 140-2-2.5MTR-MB

Branded ANSI/ASA140-2 Duplex Roller Chain 1-3/4 inch Pitch 2.5 Metres

Branded ANSI/ASA140-2 Duplex Roller Chain 1-3/4 inch Pitch 2.5 Metres
$293.38 ex VAT
$293.38 ex VAT
Sale Sold out

In stock

Price Break
2+ $196.51
5+ $185.47
10+ $183.27
29+ $181.06
49+ $178.85
75+ $176.64
100+ $165.60
200+ $163.39
250+ $161.19
500+ $158.98
1000+ $154.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (P) 44.45mm = 1.75 (1-3/4) inch
Roller Diameter (D1 max) 25.4mm
Width between inner plates (B1 min) 25.22mm
Pin dia meter (D2 max) 12.7mm
Pin length (L max) 103.3mm
Pin length (Lc max) 107.9mm
Inner plate depth (H2 max) 41mm
Plate thickness (T max) 5.6mm
Ultimate tensile strength (Q min) kN/LB 344.80/78364
Average tensile strength (Q0) kN 427.5
Transverse pitch (Pt) mm 48.87
Weight per meter (q) kg/m 15.14
