SKU: 140-2-NO11-DUN
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $27.86 ex VAT
- Sale price
- $27.86
- Regular price
-
Not in stock
Quantity Price Breaks
2
$24.80
5
$23.40
10
$23.12
29
$22.85
49
$22.57
75
$22.29
100
$20.90
200
$20.62
250
$20.34
500
$20.06
1000
$19.50
SKU:
140-2-NO11-DUN
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $27.86 ex VAT
- Sale price
- $27.86
- Regular price
-
Description

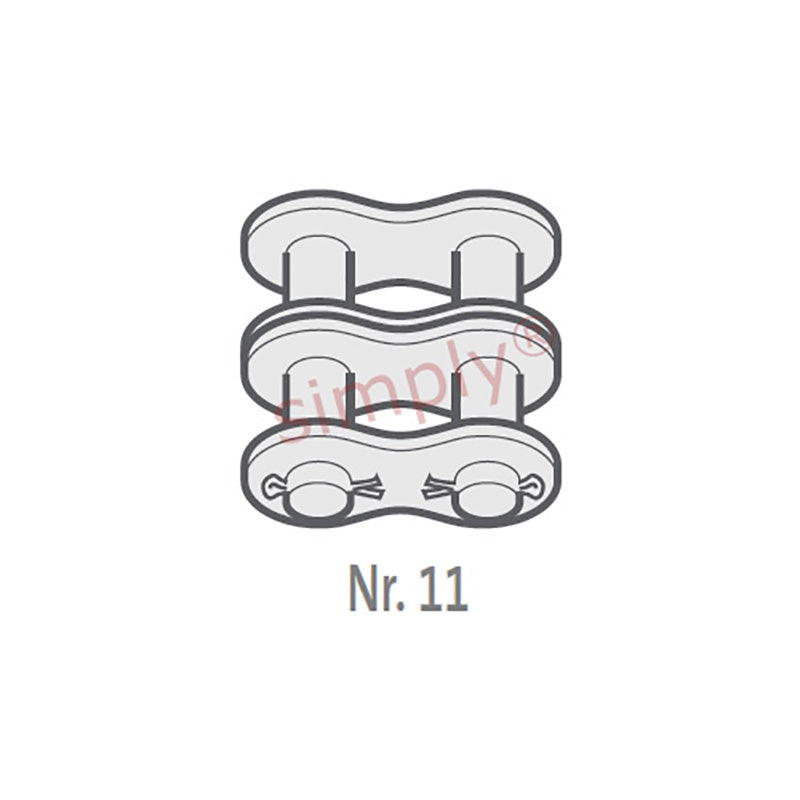

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.22mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42mm |
| Plate Width Inner max (E) | = | 5.6mm |
| Plate Width Outer max (F) | = | 5.6mm |
| Pin Diameter max (G) | = | 12.7mm |
| Pin Length max (H2) | = | 103.1mm |
| Connecting Link Extension max (J) | = | 4.80000000000001mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 340000 N |
| Weight | = | 0.77kg/m |
