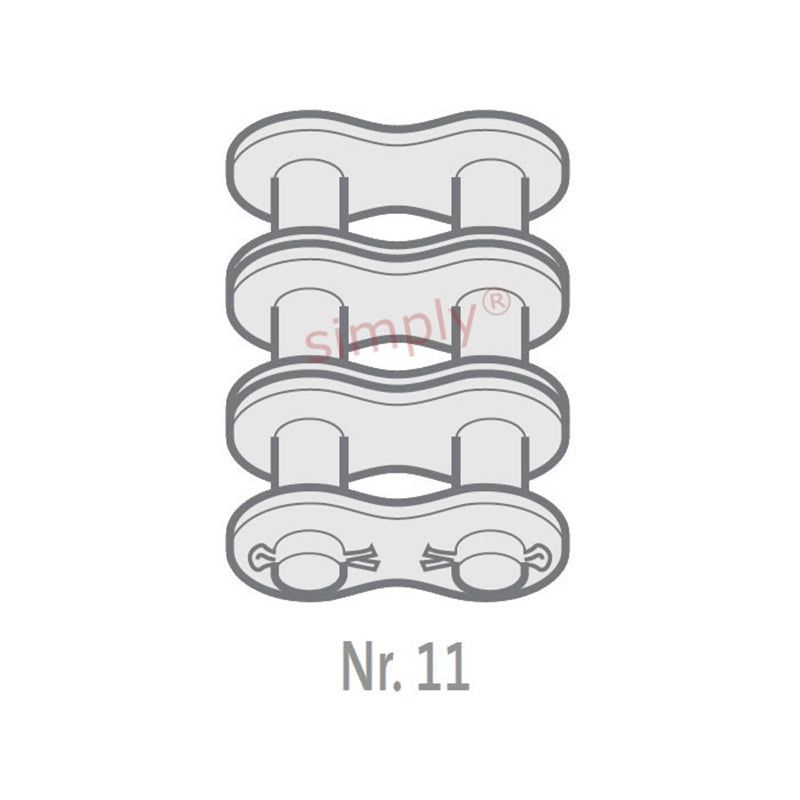

• Renold Synergy 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
  • Renold
1 2

SKU: 140-3-SYN-NO11-RENOLD

Renold Synergy 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch

Renold Synergy 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
$670.53 ex VAT
$670.53 ex VAT
Sale Sold out

In stock

Price Break
2+ $449.14
5+ $423.91
10+ $418.86
29+ $413.82
49+ $408.77
75+ $403.72
100+ $378.49
200+ $373.44
250+ $368.40
500+ $363.35
1000+ $353.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 25.4mm
Plate Height max (D) 42.23mm
Plate Width Inner max (E) 5.61mm
Plate Width Outer max (F) 5.61mm
Pin Diameter max (G) 12.71mm
Pin Length max (H2) 150.7mm
Connecting Link Extension max (J) 5.2mm
Transverse Pitch nom (K) 48.87mm
ISO606 Tensile Strength min 510000 N
Weight 0.77kg/m
