• 140X5SPA 140mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 140X5SPA 140mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 140SPA5-MB

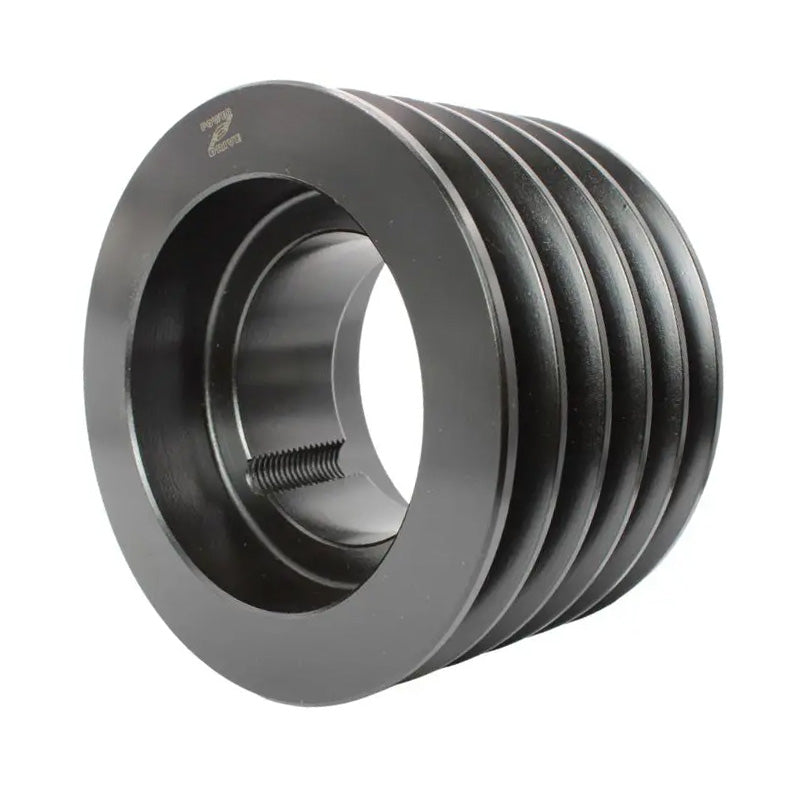

140X5SPA 140mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

140X5SPA 140mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$40.55 ex VAT
$40.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
5+ $25.64
9+ $25.33
19+ $25.03
49+ $24.72
74+ $24.42
99+ $22.89
199+ $22.59
249+ $22.28
499+ $21.98
999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
146mm
Pitch Diameter:
140mm
Max Bore:
60mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 140mm
Overall Outer Diameter C 146mm
Max Bore A 60mm
Overall Sheave Depth F 80mm
Bush Seat Length G 45mm
Inner Recess Diameter D 106mm
Inner Recess Length H 17.5mm
