• 140X4SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 140X4SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 140SPB4-MB

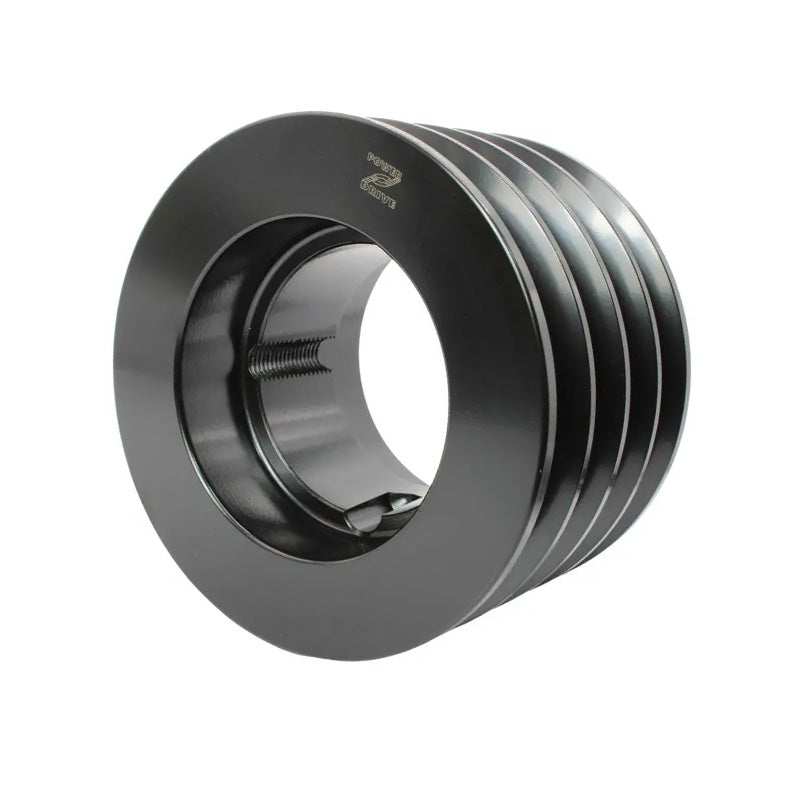

140X4SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

140X4SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$45.26 ex VAT
$45.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.31
5+ $28.61
9+ $28.27
19+ $27.93
49+ $27.59
74+ $27.25
99+ $25.54
199+ $25.20
249+ $24.86
499+ $24.52
999+ $23.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
147.6mm
Pitch Diameter:
140mm
Max Bore:
60mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 140mm
Overall Outer Diameter C 147.6mm
Max Bore A 60mm
Overall Sheave Depth F 82mm
Bush Seat Length G 45mm
Inner Recess Diameter D 100mm
Inner Recess Length H 18.5mm
