SKU: 140SPB5-MB

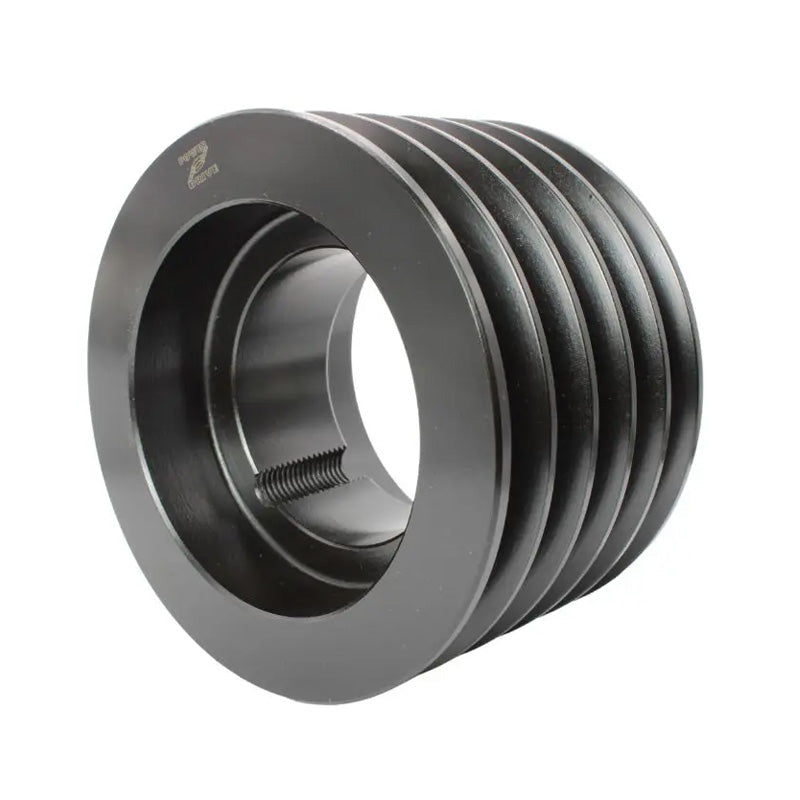

140X5SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

140X5SPB 140mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$59.71 ex VAT
$59.71 ex VAT
Sale Sold out

In stock

Price Break
3+ $40.00
5+ $37.75
9+ $37.30
19+ $36.85
49+ $36.40
74+ $35.95
99+ $33.70
199+ $33.26
249+ $32.81
499+ $32.36
999+ $31.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
147.6mm
Pitch Diameter:
140mm
Max Bore:
60mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 140mm
Overall Outer Diameter C 147.6mm
Max Bore A 60mm
Overall Sheave Depth F 101mm
Bush Seat Length G 45mm
Inner Recess Diameter D 97mm
Inner Recess Length H 28mm
