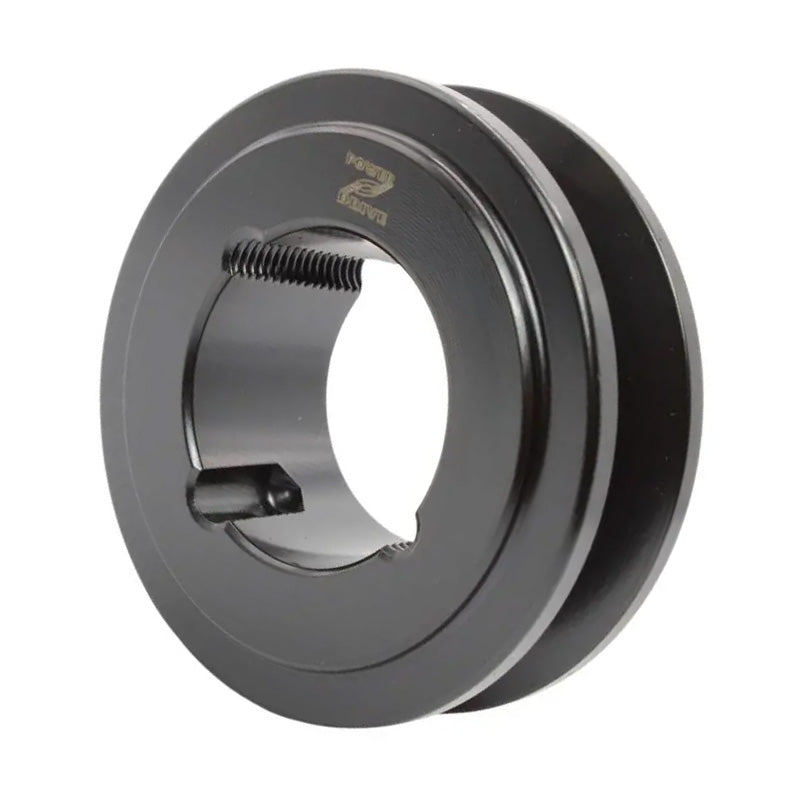

• 140X1SPZ 140mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
1 1

SKU: 140SPZ1-MB

140X1SPZ 140mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)

140X1SPZ 140mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
$22.08 ex VAT
$22.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.79
5+ $13.96
9+ $13.80
19+ $13.63
49+ $13.46
74+ $13.30
99+ $12.47
199+ $12.30
249+ $12.13
499+ $11.97
999+ $11.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
1
Outside Diameter:
144.6mm
Pitch Diameter:
140mm
Max Bore:
42mm
Technical

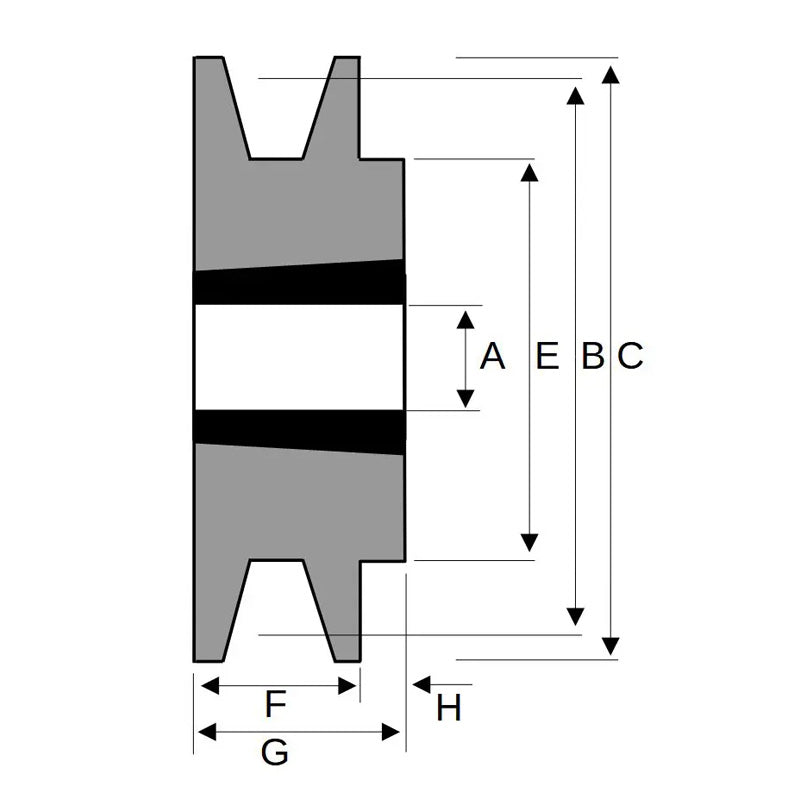

Number of Grooves 1
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1610+tapered+locking+bush">1610 Click Here</a>
Pitch Diameter B 140mm
Overall Outer Diameter C 144.6mm
Max Bore A 42mm
Outer Hub Diameter E 92mm
Overall Sheave Depth F 16mm
Bush Seat Length G 25mm
Inner Recess Diameter D 111mm
Inner Recess Length H 3mm
