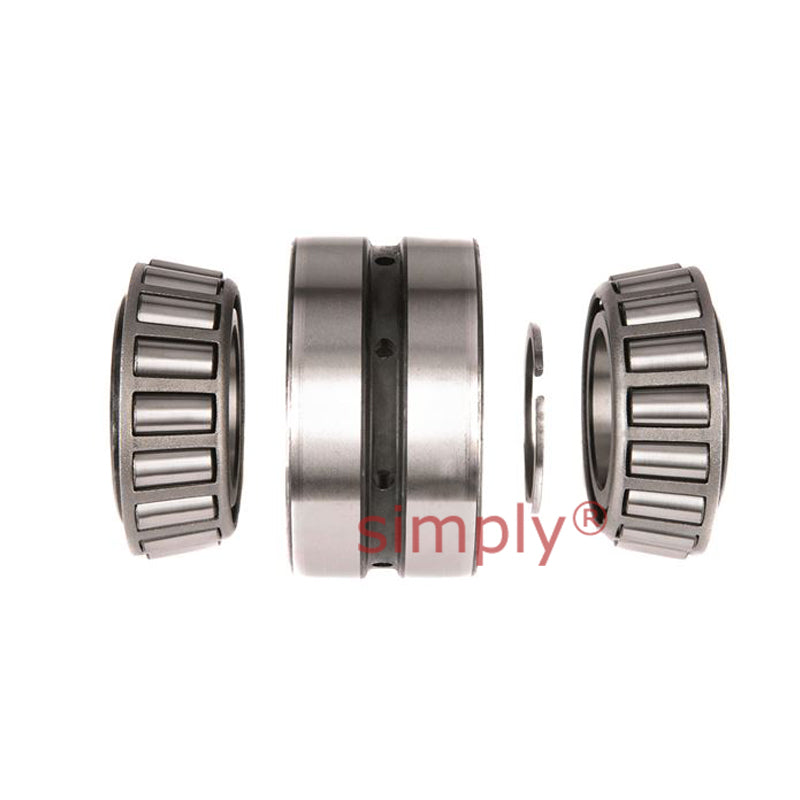

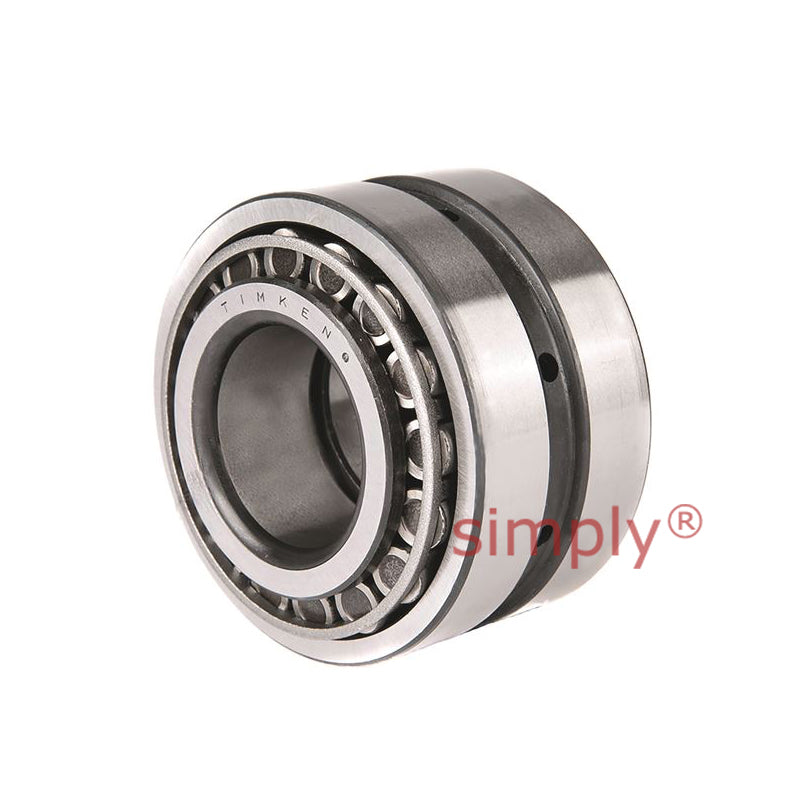

• Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
  • Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
  • Timken
1 3

SKU: 14139/14276D/X2S14137-TIM

Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch

Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
$135.67 ex VAT
$135.67 ex VAT
Sale Sold out

Low stock

Price Break
10+ $90.88
20+ $85.77
30+ $84.75
40+ $83.73
50+ $82.71
75+ $81.69
100+ $76.58
200+ $75.56
250+ $74.54
500+ $73.52
1000+ $71.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:
Timken - High Quality
Inside Diameter:
34.99mm = 1.378 inch
Outside Diameter:
69.01mm = 2.717 inch
Width:
46.04mm = 1.813 (1-13/16) inch
Technical
d 34.975mm = 1.377 inch
D 69.012mm = 2.717 inch
T 46.04mm = 1.8126 inch
C 38.1mm = 1.5 inch
Dynamic (1) C1 88000N
Factors (5) e 0.38
Factors (5) Y1 1.77
Factors (5) Y2 2.63
Dynamic (2) C90 13100N
Dynamic (2) Ca90 8570N
Dynamic (2) C90(2) 22800N
Factors (5) K 1.53
Shaft max shaft fillet radius R(3) 1.3mm = 0.05 inch
Shaft backing shoulder diameter db 42.5mm = 1.67 inch
Housing max shaft fillet radius r(3) 0.8mm = 0.03 inch
Housing backing shoulder diameter Da 63mm = 2.48 inch
G1 18
G2 9.4
Cg 0.0668
