• 150X4SPB 150mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 150X4SPB 150mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 150SPB4-MB

150X4SPB 150mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

150X4SPB 150mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$49.64 ex VAT
$49.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $33.25
5+ $31.38
9+ $31.01
19+ $30.63
49+ $30.26
74+ $29.89
99+ $28.02
199+ $27.64
249+ $27.27
499+ $26.90
999+ $26.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
157.6mm
Pitch Diameter:
150mm
Max Bore:
60mm

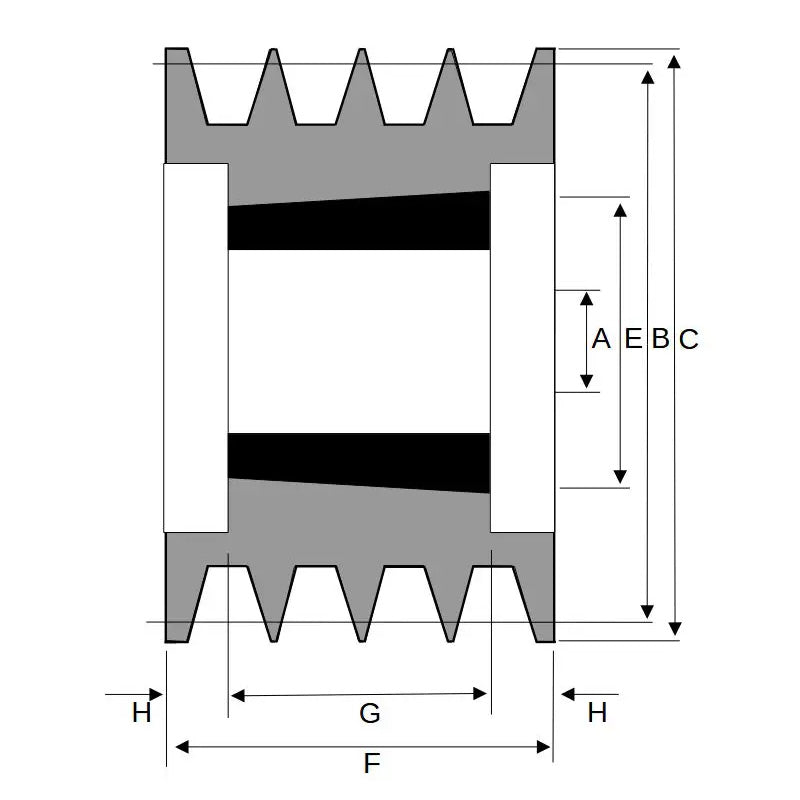

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 150mm
Overall Outer Diameter C 157.6mm
Max Bore A 60mm
Overall Sheave Depth F 82mm
Bush Seat Length G 45mm
Inner Recess Diameter D 107mm
Inner Recess Length H 18.5mm
