SKU: 156XL-025-78

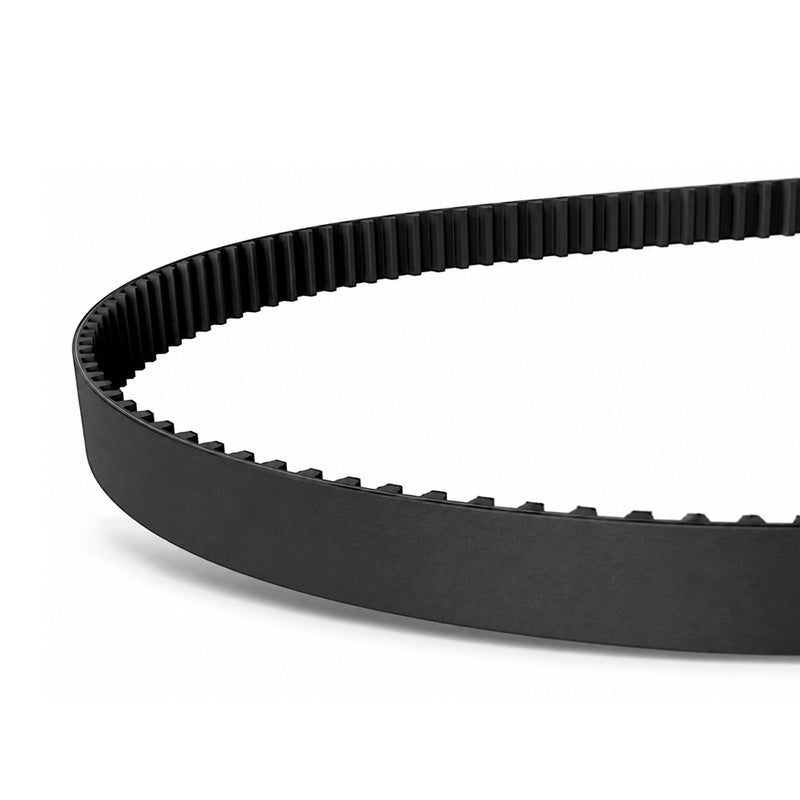

156XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 15.6 inch Length 78 Teeth
- Regular price
- $10.53 ex VAT
- Sale price
- $10.53
- Regular price
-
In stock
Quantity Price Breaks
3
$9.37
5
$8.85
10
$8.74
15
$8.63
20
$8.53
30
$8.42
40
$7.90
50
$7.79
60
$7.69
75
$7.58
100
$7.37
SKU:
156XL-025-78
156XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 15.6 inch Length 78 Teeth
- Regular price
- $10.53 ex VAT
- Sale price
- $10.53
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.25 inch = 6.35mm |
| Pitch length | = | 15.6 inch = 396.24mm |
| Number of teeth | = | 78 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
