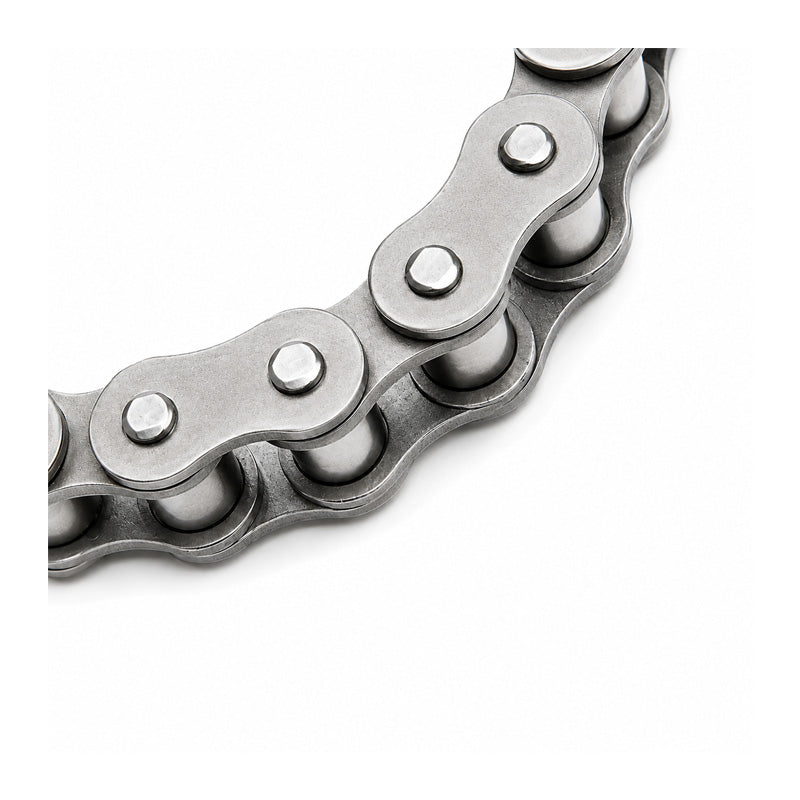

• Branded ANSI/ASA160-1 Simplex Roller Chain 2 inch Pitch 2.5 Metres
1 1

SKU: 160-1-2.5MTR-MB

Branded ANSI/ASA160-1 Simplex Roller Chain 2 inch Pitch 2.5 Metres

Branded ANSI/ASA160-1 Simplex Roller Chain 2 inch Pitch 2.5 Metres
$196.22 ex VAT
$196.22 ex VAT
Sale Sold out

In stock

Price Break
2+ $131.44
5+ $124.05
10+ $122.58
29+ $121.10
49+ $119.62
75+ $118.15
100+ $110.76
200+ $109.29
250+ $107.81
500+ $106.33
1000+ $103.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
50.8mm = 2 inch

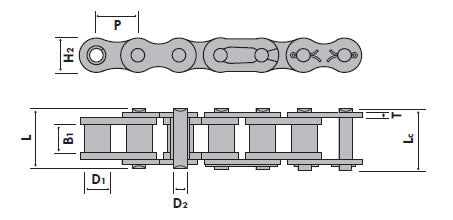

Technical
Pitch (P) 50.8mm = 2 inch
Roller Diameter (D1 max) 28.58mm
Width between inner plates (B1 min) 31.55mm
Pin dia meter (D2 max) 14.27mm
Pin length (L max) 64.6mm
Pin length (Lc max) 69.6mm
Inner plate depth (H2 max) 47.8
mmPlate thickness (T max) 6.4
mmUltimate tensile strength (Q min) kN/LB 226.80/51545
Average tensile strength (Q0) kN 278.9
Weight per meter (q) kg/m 10.1
