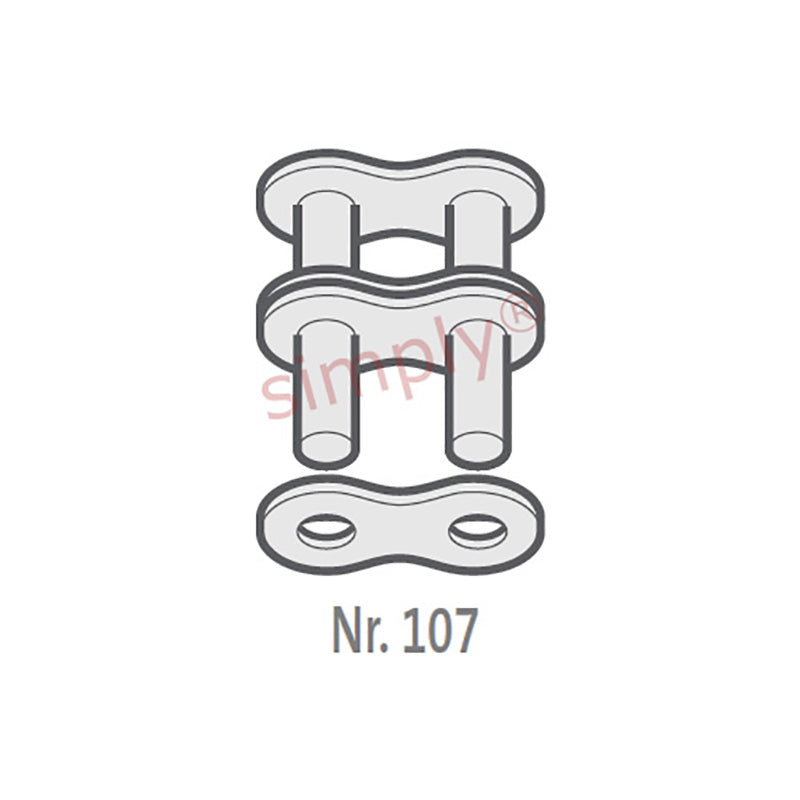

• Renold Blue Box 160-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 2 inch Pitch
  • Renold
1 2

SKU: 160-2-BB-NO107-RENOLD

Renold Blue Box 160-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 2 inch Pitch

Renold Blue Box 160-2-NO107 ANSI / AS Duplex Chain Outer Link To Be Riveted 2 inch Pitch
$391.51 ex VAT
$391.51 ex VAT
Sale Sold out

In stock

Price Break
2+ $262.24
5+ $247.51
10+ $244.57
29+ $241.62
49+ $238.67
75+ $235.73
100+ $220.99
200+ $218.05
250+ $215.10
500+ $212.15
1000+ $206.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 31.55mm
Roller Diameter max (C) 28.58mm
Plate Height max (D) 48.26mm
Plate Width Inner max (E) 6.35mm
Plate Width Outer max (F) 6.35mm
Pin Diameter max (G) 14.29mm
Pin Length max (H2) 121.6mm
Connecting Link Extension max (J) 6.5mm
Transverse Pitch nom (K) 58.55mm
ISO606 Tensile Strength min 446000 N
Weight 0.87kg/m
