SKU: 160-2-SD-10FT-RENOLD

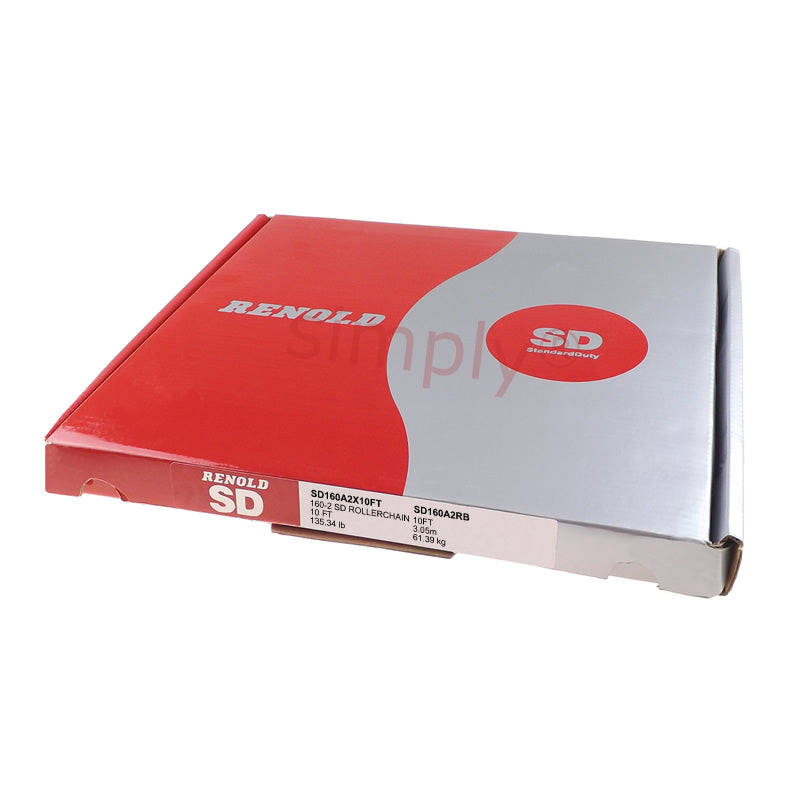

Renold Standard Duty 160-2 ANSI / AS Duplex Roller Chain 2 inch Pitch - 10 Feet Length
Renold Standard Duty 160-2 ANSI / AS Duplex Roller Chain 2 inch Pitch - 10 Feet Length
Regular price
$851.67
ex VAT
Regular price
Sale price
$851.67
ex VAT
Equivalent to: SD160-2
In stock
Price Break
0+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
| Renold ANSI Duplex Chain: The Renold precision steel roller chain is a highly efficient and versatile means of transmitting mechanical power, which, in the field of industrial applications, has almost completely superseded all other types of chain previously used. A Renold precision steel roller chain consists of a series of journal bearings held in precise relationship to each other by the constraining link plates. Each bearing consists of a bearing pin and bush on which the chain roller revolves. The bearing pin and bush are case hardened to allow articulation under high pressures, and to content with the load carrying pressures and gearing action imparted via the chain rollers. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 20.14kg/m |
