SKU: 160-3-BB-NO11-RENOLD
Renold Blue Box 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Renold Blue Box 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
$323.71
ex VAT
Regular price
Sale price
$323.71
ex VAT
In stock
Price Break
2+
$216.83
5+
$204.65
10+
$202.21
29+
$199.77
49+
$197.34
75+
$194.90
100+
$182.72
200+
$180.28
250+
$177.85
500+
$175.41
1000+
$170.54
Quantity
Couldn't load pickup availability
Share this product
Description
Description

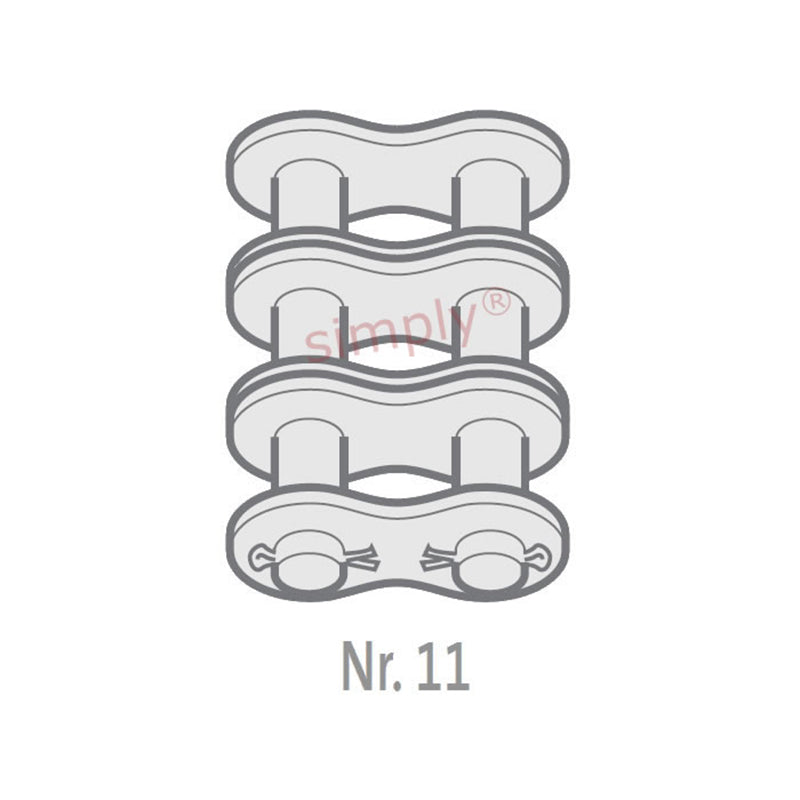

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48.26mm |
| Plate Width Inner max (E) | 6.35mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 14.29mm |
| Pin Length max (H2) | 180.2mm |
| Connecting Link Extension max (J) | 6.5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 1.32kg/m |
