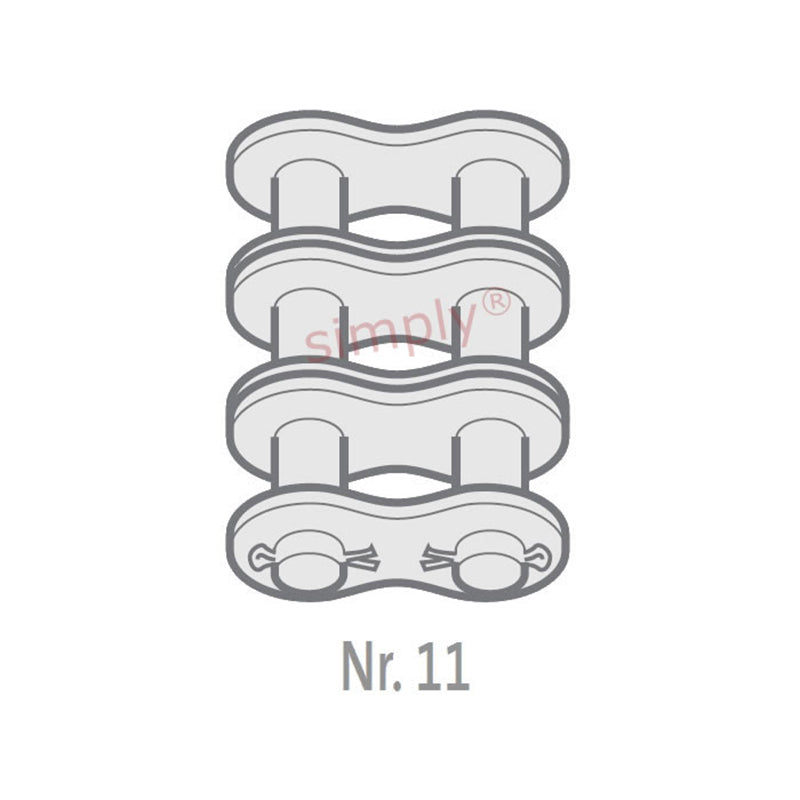

• Renold SD 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
  • Renold
1 2

SKU: 160-3-SD-NO11-RENOLD

Renold SD 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch

Renold SD 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
$138.84 ex VAT
$138.84 ex VAT
Sale Sold out

In stock

Price Break
2+ $93.00
5+ $87.77
10+ $86.73
29+ $85.68
49+ $84.64
75+ $83.59
100+ $78.37
200+ $77.32
250+ $76.28
500+ $75.23
1000+ $73.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 31.55mm
Roller Diameter max (C) 28.58mm
Plate Height max (D) 48mm
Plate Width Inner max (E) 6.4mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 14.2mm
Pin Length max (H1) 170.5mm
Connecting Link Extension max (J) 16.8mm
ISO606 Tensile Strength min 669000 N
Weight 58.55kg/m
