SKU: 16002-2Z/C3-SKF

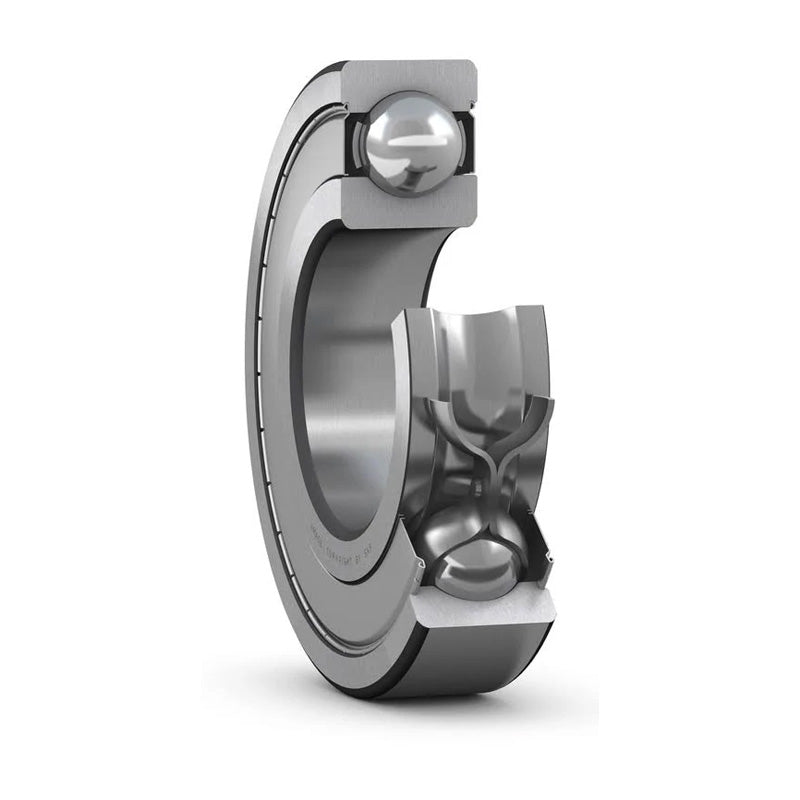

SKF 160022ZC3 Metal Shielded Deep Groove Ball Bearing 15x32x8mm
SKF 160022ZC3 Metal Shielded Deep Groove Ball Bearing 15x32x8mm
Equivalent to: 16002ZZEC3 16002ZZC3 16002.2ZC3 16002KDDC3 16002DDC3 160022ZRC3 16002FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 8mm |
| Dynamic load C | 5.85 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.025 kg |
| d1 | 20.2mm |
| d2 | 0mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 0mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 14 |
