SKU: 16002-ZZ-CDX

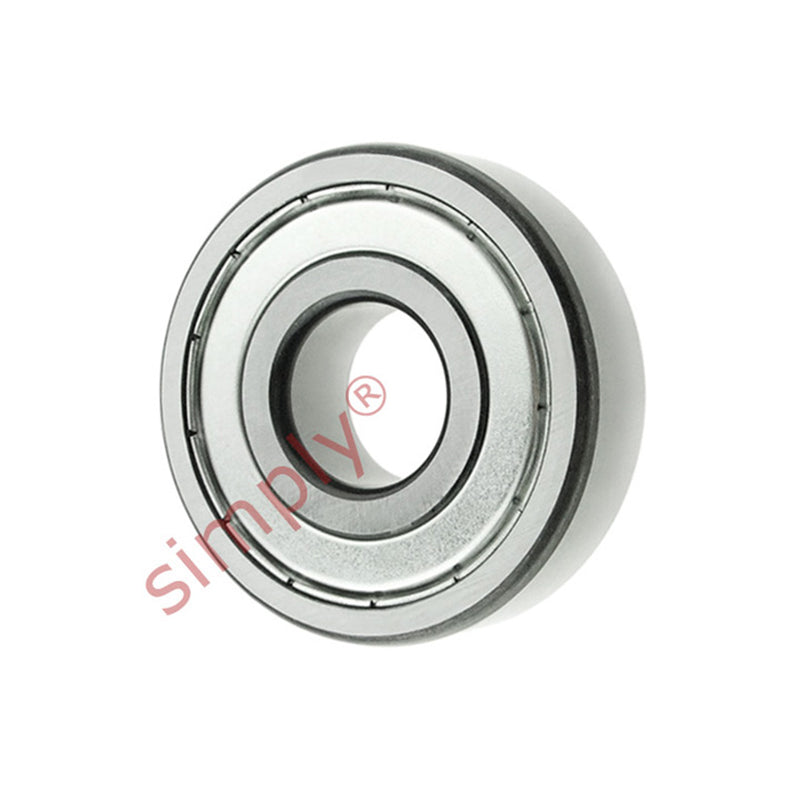

Codex 16002ZZ Metal Shielded Deep Groove Ball Bearing 15x32x8mm
Equivalent to: 16002ZZ ELL17 160022ZR 16002ZZE 16002FF 16002DD 16002DDC 16002KDDC EL15ZZ EL152Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 8mm |
| Dynamic load C | 5.85 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.025 kg |
| d1 | 20.2mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| Da max | 30mm |
| ra max | 0.3 |
| Calc factor kr | 0.02 |
| Calc factor Cor f0 | 14 |
