SKU: 16003-2Z-C3-NKE

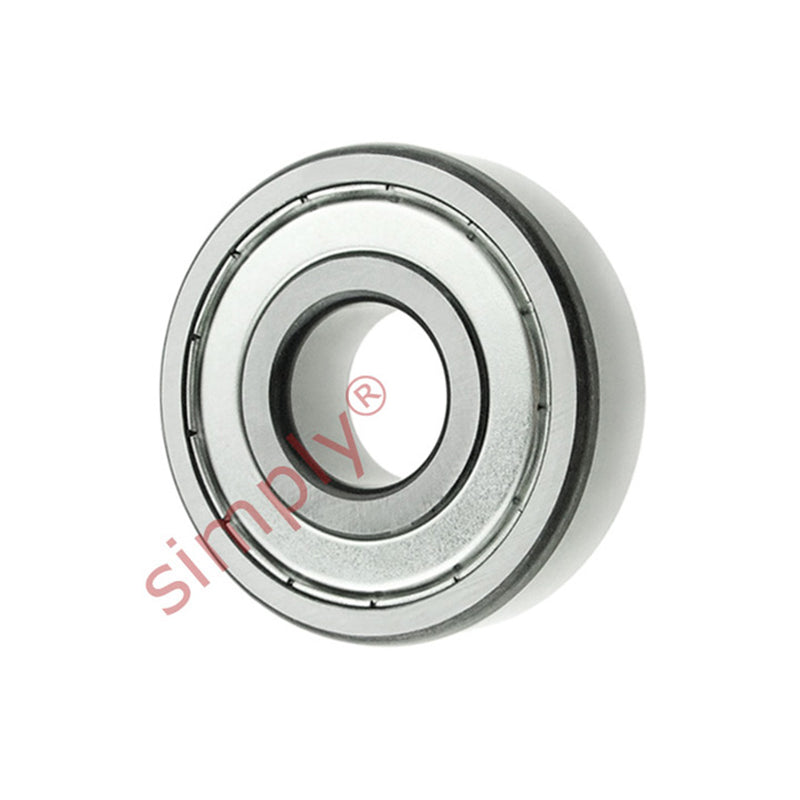

NKE 160032ZC3 Metal Shielded Deep Groove Ball Bearing 17x35x8mm - Allow 2-3 Days
Equivalent to: 16003ZZEC3 16003ZZC3 16003.2ZC3 16003KDDC3 16003DDC3 160032ZRC3 16003FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 8mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.032 kg |
| d1 | 22.7mm |
| D2 | 31.2mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 14 |
