SKU: 16003-2Z-FAG

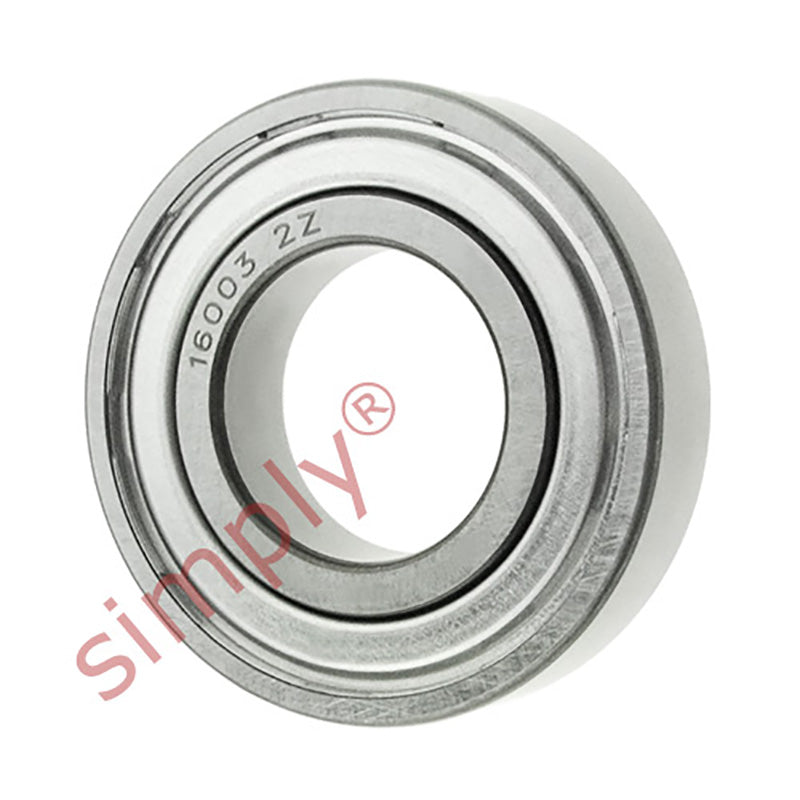

FAG 160032Z Metal Shielded Deep Groove Ball Bearing 17x35x8mm
Equivalent to: 16003ZZE 16003ZZ 16003.2Z 16003KDD 16003DD 16003FF 160032ZR
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 8mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 22000 rpm |
| Mass | 0.032 kg |
| d1 | 22.7mm |
| D2 | 31.2mm |
| r1r2 min | 0.3mm |
| da min | 19 |
