SKU: 16004/C3-MB

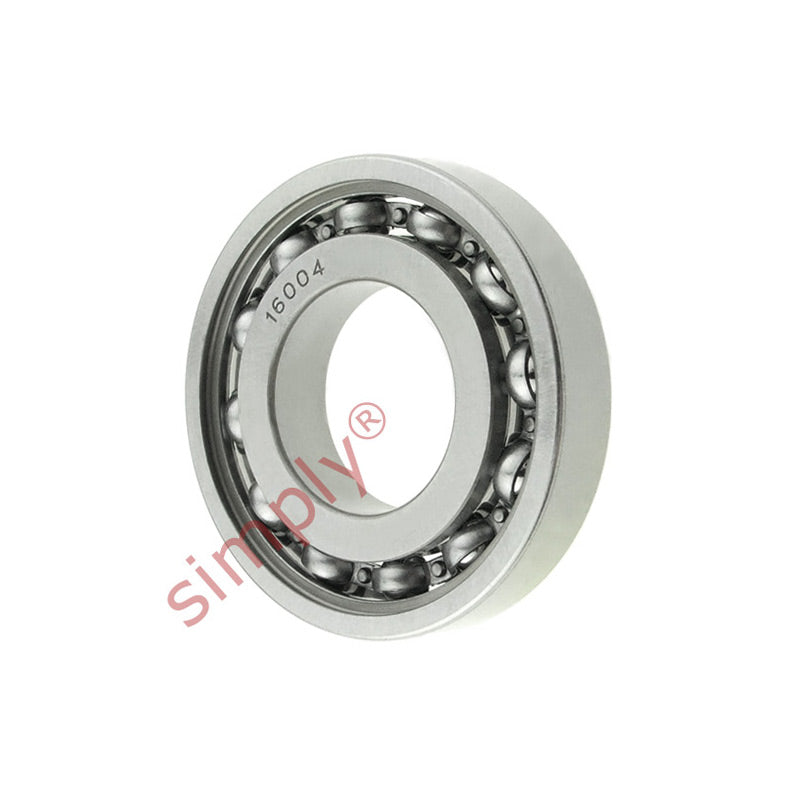

Major Branded 16004C3 Open Deep Groove Ball Bearing 20x42x8mm
Major Branded 16004C3 Open Deep Groove Ball Bearing 20x42x8mm
Regular price
$9.90
ex VAT
Regular price
Sale price
$9.90
ex VAT
Equivalent to: 16004 16004C3
In stock
Price Break
10+
$6.63
19+
$6.26
29+
$6.19
39+
$6.11
49+
$6.04
74+
$5.96
99+
$5.59
199+
$5.52
249+
$5.44
499+
$5.37
999+
$5.22
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 8mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 4.05 kN |
| Fatigue load limit Pu | 0.173 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Mass | 0.05 kg |
| d1 | 27.3mm |
| D1 | 34.6mm |
| r1r2 min | 0.3mm |
| da min | 22mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.02 |
| Calc factor | 15 |
