SKU: 16004-NTN

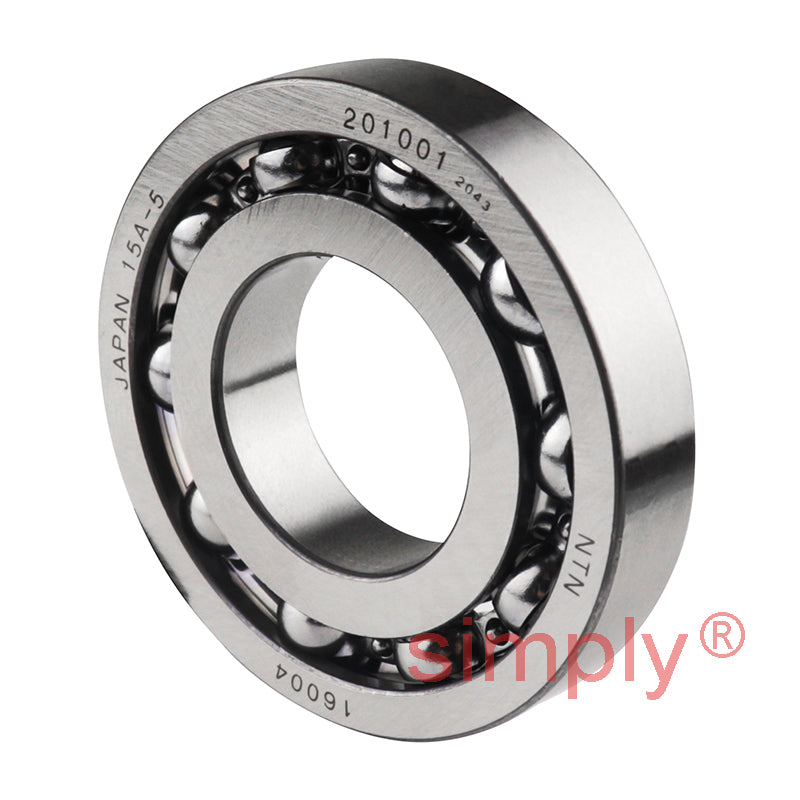

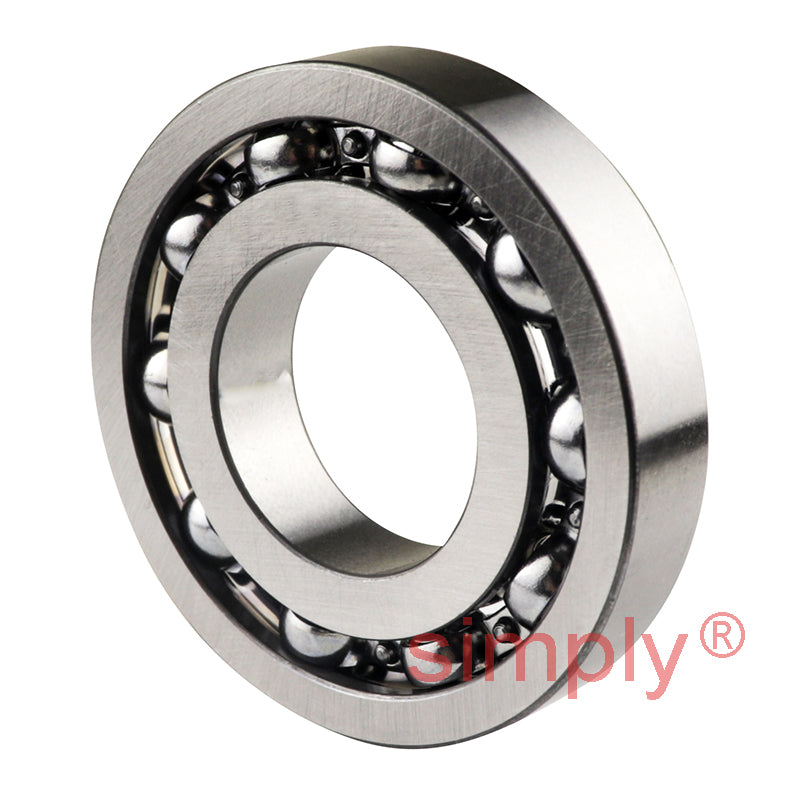

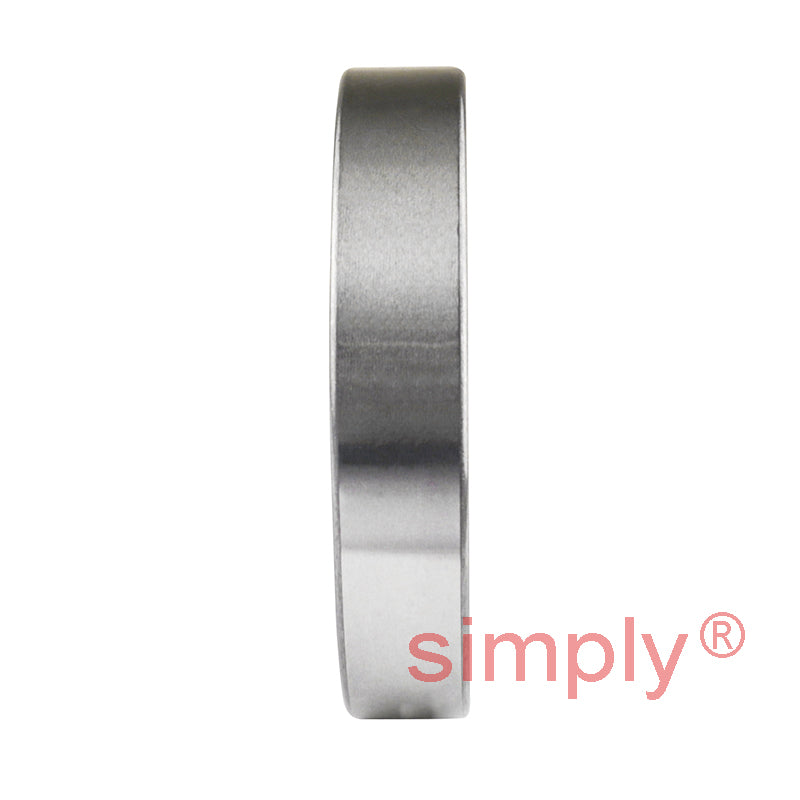

NTN 16004 Open Type Deep Groove Ball Bearing 20x42x8mm

NTN 16004 Open Type Deep Groove Ball Bearing 20x42x8mm
$15.05 ex VAT
$15.05 ex VAT
Sale Sold out

Equivalent to: 16004CM EL20 ELL20

In stock

Price Break
3+ $10.08
5+ $9.52
10+ $9.40
25+ $9.29
49+ $9.18
74+ $9.06
99+ $8.50
199+ $8.38
249+ $8.27
499+ $8.16
999+ $7.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
8mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 20mm
D 42mm
B 8mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 8.75 kN
C<sub>or</sub> 4.5 kN
C<sub>u</sub> 0.35 kN
f<sub>0</sub> 14.5 kN
Grease 18000 rpm
Oil 21000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 22mm
D<sub>a</sub> Max. 40mm
r<sub>as</sub> Max. 0.3mm
Weight 0.051 kg
