SKU: 16005-2Z-EU

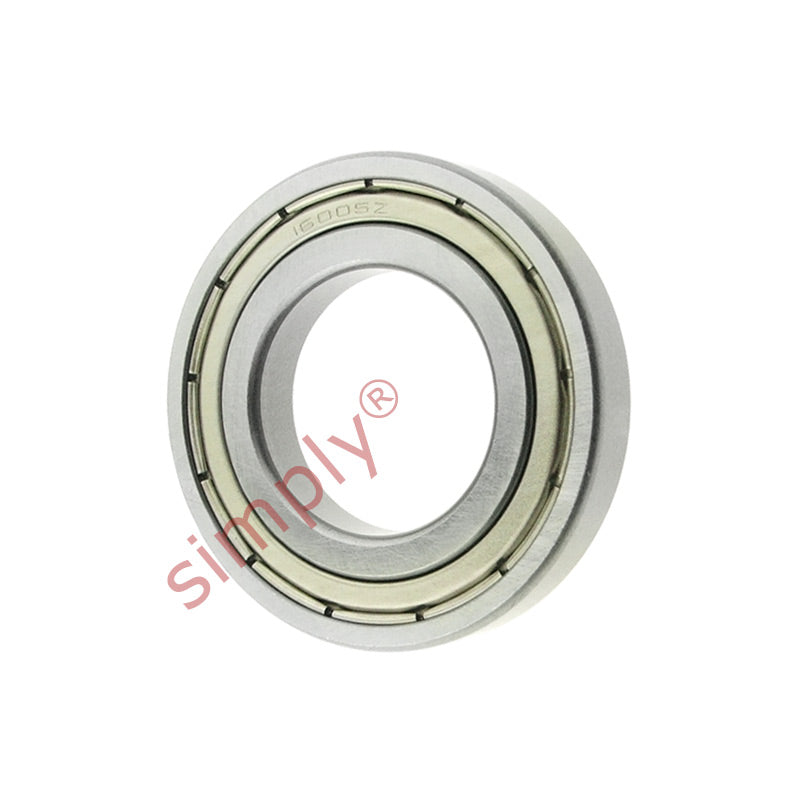

16005ZZ Budget Metal Shielded Deep Groove Ball Bearing 25x47x8mm
Equivalent to: 16005ZZE 16005ZZ 16005.2Z 16005KDD 16005DD 16005FF 160052ZR 16005ZZE 16005ZZ 160052ZR 160052RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 8mm |
| r min | 0.3mm |
| Dynamic load Cr | 8.85 kN |
| Static load Cor | 5.6 kN |
| Speed in oil | 18000 rpm |
