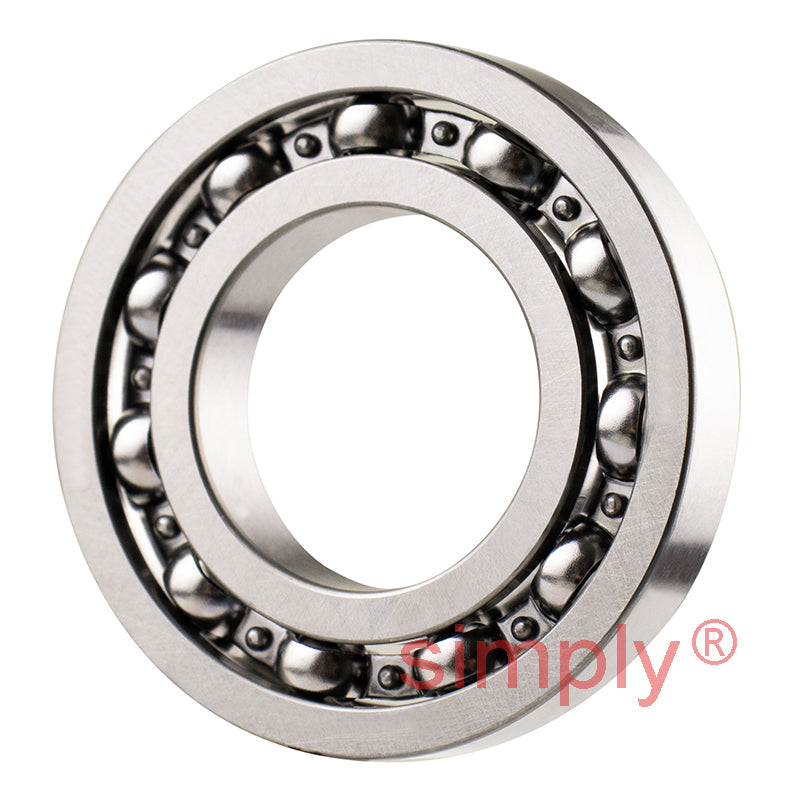

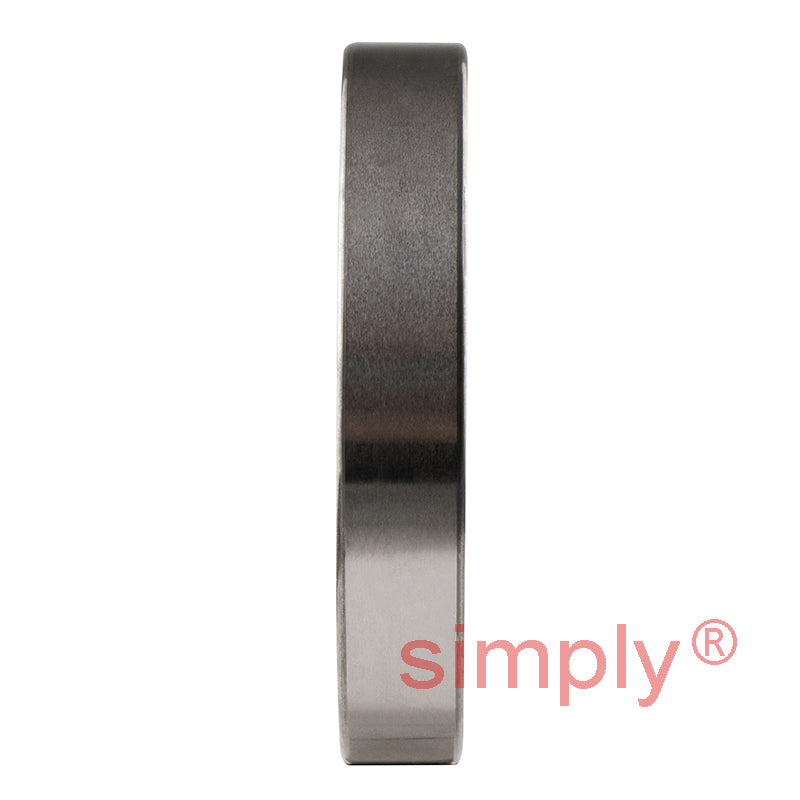

• NTN 16005 Open Type Deep Groove Ball Bearing 25x47x8mm
  • NTN 16005 Open Type Deep Groove Ball Bearing 25x47x8mm
  • NTN 16005 Open Type Deep Groove Ball Bearing 25x47x8mm
  • NTN
1 4

SKU: 16005-NTN

NTN 16005 Open Type Deep Groove Ball Bearing 25x47x8mm

NTN 16005 Open Type Deep Groove Ball Bearing 25x47x8mm
$13.15 ex VAT
$13.15 ex VAT
Sale Sold out

Equivalent to: 16005CM EL25 ELL25

In stock

Price Break
3+ $8.81
5+ $8.32
10+ $8.22
25+ $8.12
49+ $8.02
74+ $7.92
99+ $7.43
199+ $7.33
249+ $7.23
499+ $7.13
999+ $6.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
47mm
Width:
8mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 25mm
D 47mm
B 8mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 9.25 kN
C<sub>or</sub> 5.1 kN
C<sub>u</sub> 0.4 kN
f<sub>0</sub> 15.1 kN
Grease 15000 rpm
Oil 18000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 27mm
D<sub>a</sub> Max. 45mm
r<sub>as</sub> Max. 0.3mm
Weight 0.06 kg
