SKU: 16007-NTN

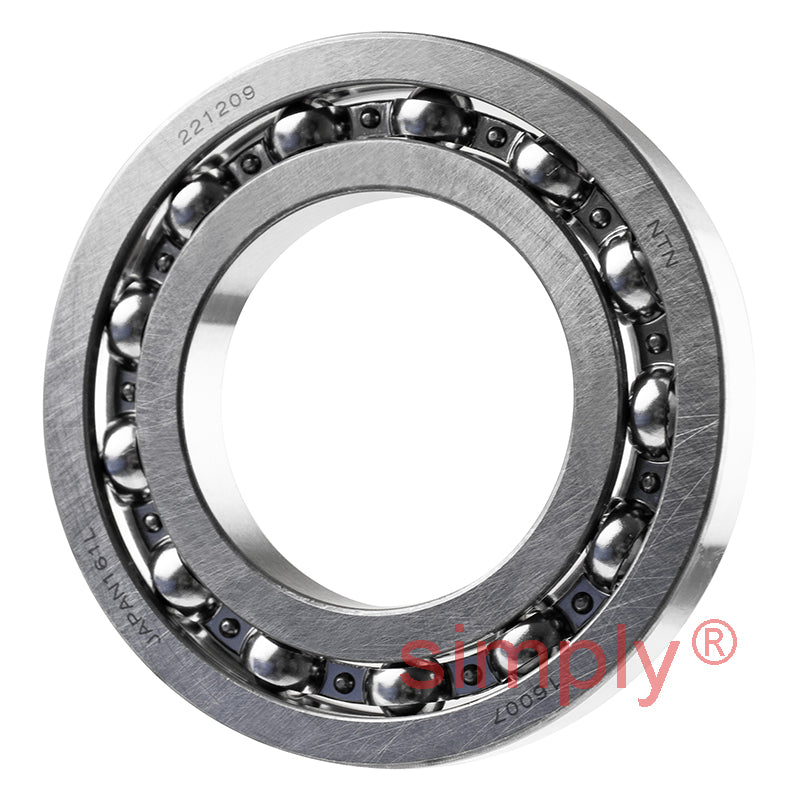

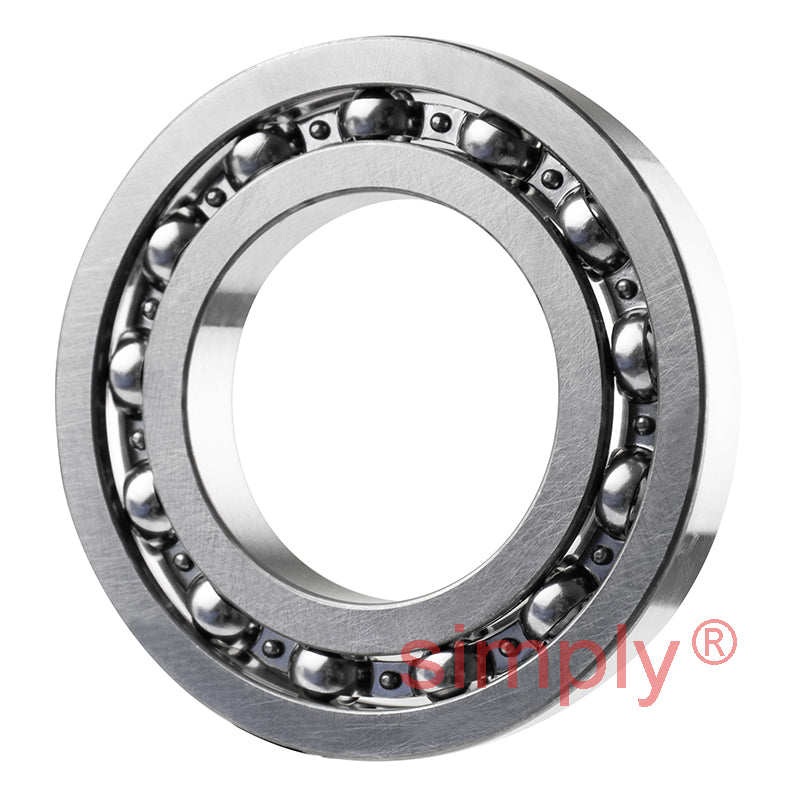

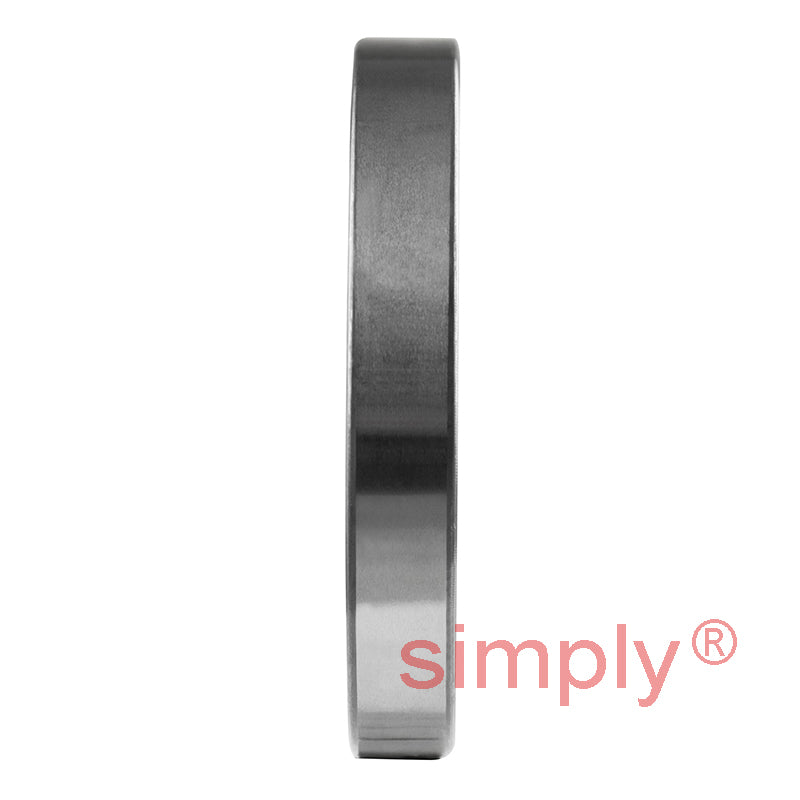

NTN 16007 Open Type Deep Groove Ball Bearing 35x62x9mm

NTN 16007 Open Type Deep Groove Ball Bearing 35x62x9mm
$16.61 ex VAT
$16.61 ex VAT
Sale Sold out

Equivalent to: 16007CM EL35 ELL35

In stock

Price Break
3+ $11.13
5+ $10.50
10+ $10.38
25+ $10.25
49+ $10.13
74+ $10.00
99+ $9.38
199+ $9.25
249+ $9.13
499+ $9.00
999+ $8.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
9mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.9 kN
C<sub>or</sub> 8.2 kN
C<sub>u</sub> 0.605 kN
f<sub>0</sub> 15.6 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 37mm
D<sub>a</sub> Max. 60mm
r<sub>as</sub> Max. 0.3mm
Weight 0.11 kg
