• NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
  • NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
  • NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
  • NTN
1 4

SKU: 16008-NTN

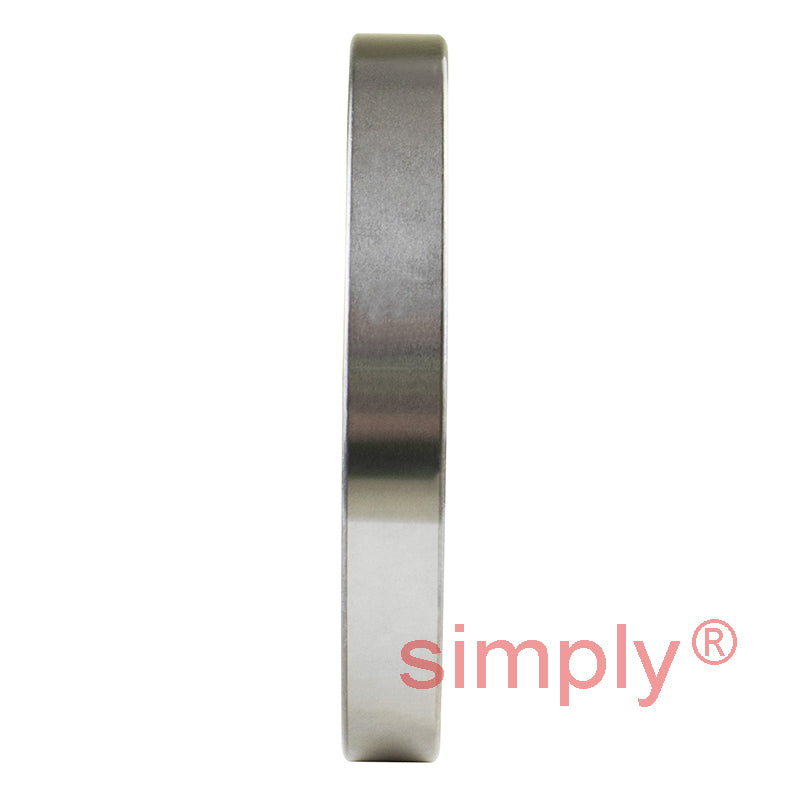

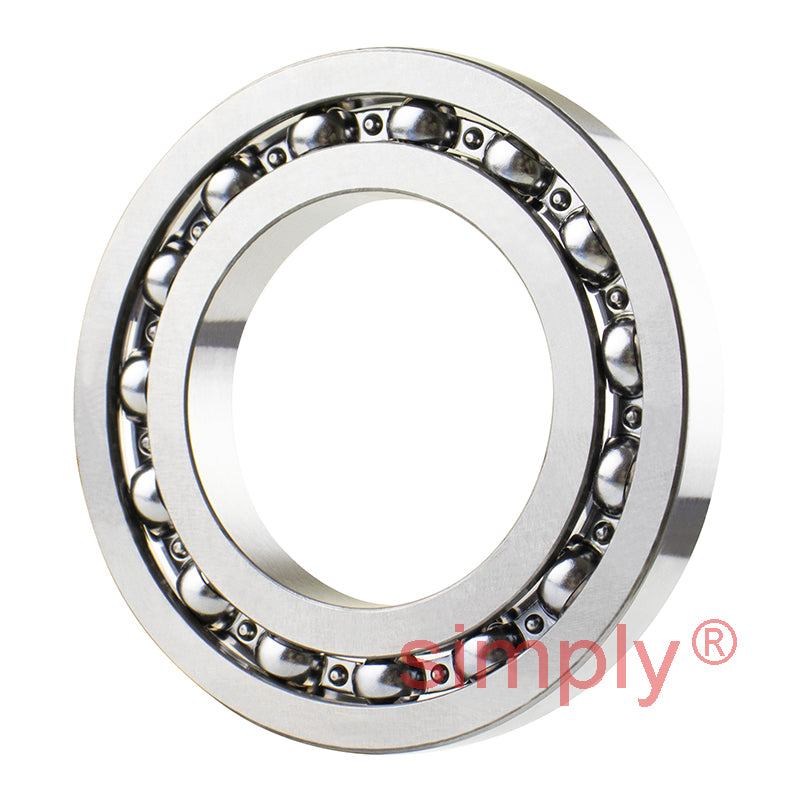

NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm

NTN 16008 Open Type Deep Groove Ball Bearing 40x68x9mm
$17.95 ex VAT
$17.95 ex VAT
Sale Sold out

Equivalent to: 16008CM EL40 ELL40

In stock

Price Break
3+ $12.02
5+ $11.35
10+ $11.21
25+ $11.08
49+ $10.94
74+ $10.81
99+ $10.13
199+ $10.00
249+ $9.86
499+ $9.73
999+ $9.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
9mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 9mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 14 kN
C<sub>or</sub> 9.65 kN
C<sub>u</sub> 0.685 kN
f<sub>0</sub> 16 kN
Grease 10000 rpm
Oil 12000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 42mm
D<sub>a</sub> Max. 66mm
r<sub>as</sub> Max. 0.3mm
Weight 0.125 kg
