SKU: 16012-NTN

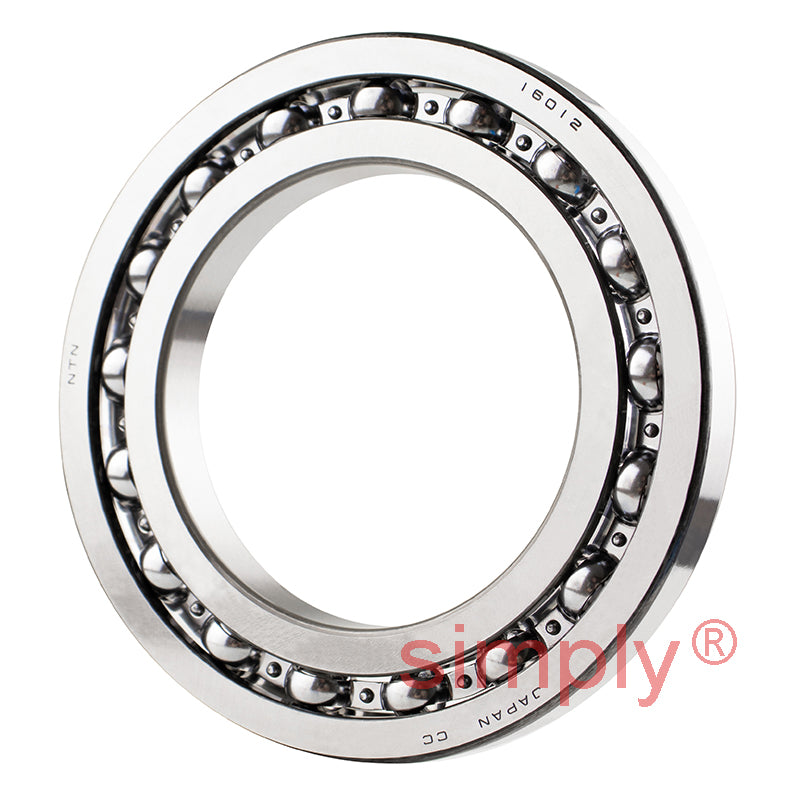

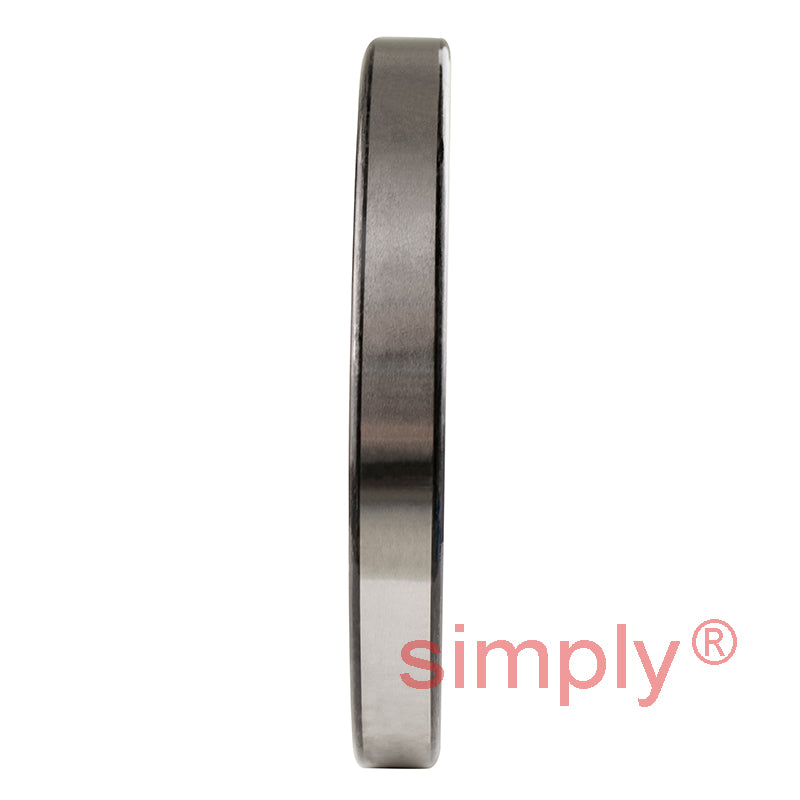

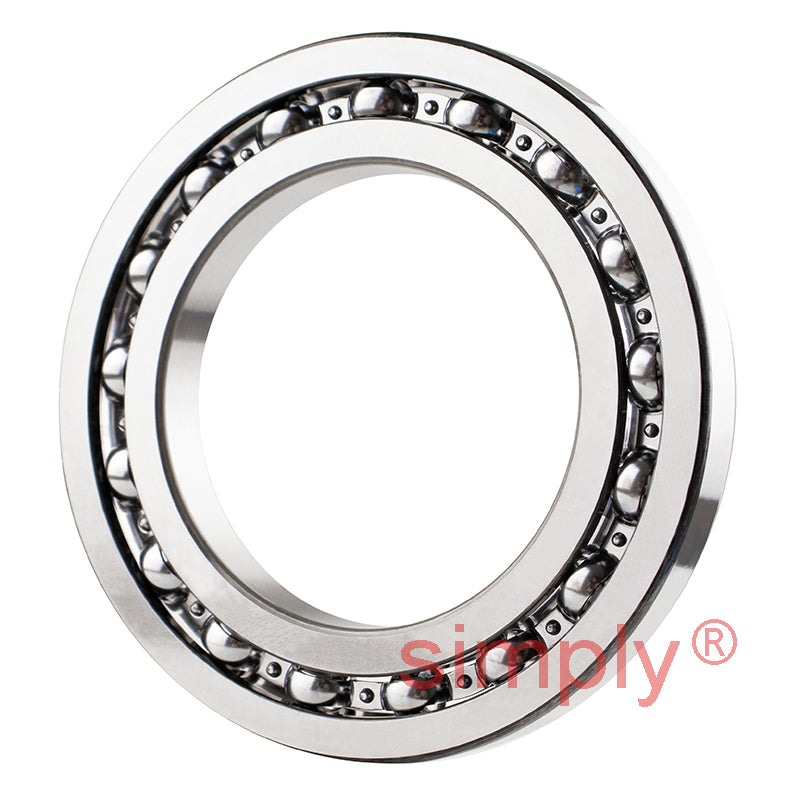

NTN 16012 Open Type Deep Groove Ball Bearing 60x95x11mm

NTN 16012 Open Type Deep Groove Ball Bearing 60x95x11mm
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

Equivalent to: 16012CM ELN60 ELLN60

In stock

Price Break
3+ $21.60
5+ $20.39
10+ $20.14
25+ $19.90
49+ $19.66
74+ $19.42
99+ $18.20
199+ $17.96
249+ $17.72
499+ $17.47
999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
11mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 11mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 22.1 kN
C<sub>or</sub> 17.5 kN
C<sub>u</sub> 1.2 kN
f<sub>0</sub> 16.3 kN
Grease 7000 rpm
Oil 8300 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 64mm
D<sub>a</sub> Max. 91mm
r<sub>as</sub> Max. 0.6mm
Weight 0.283 kg
