SKU: 16013-NTN

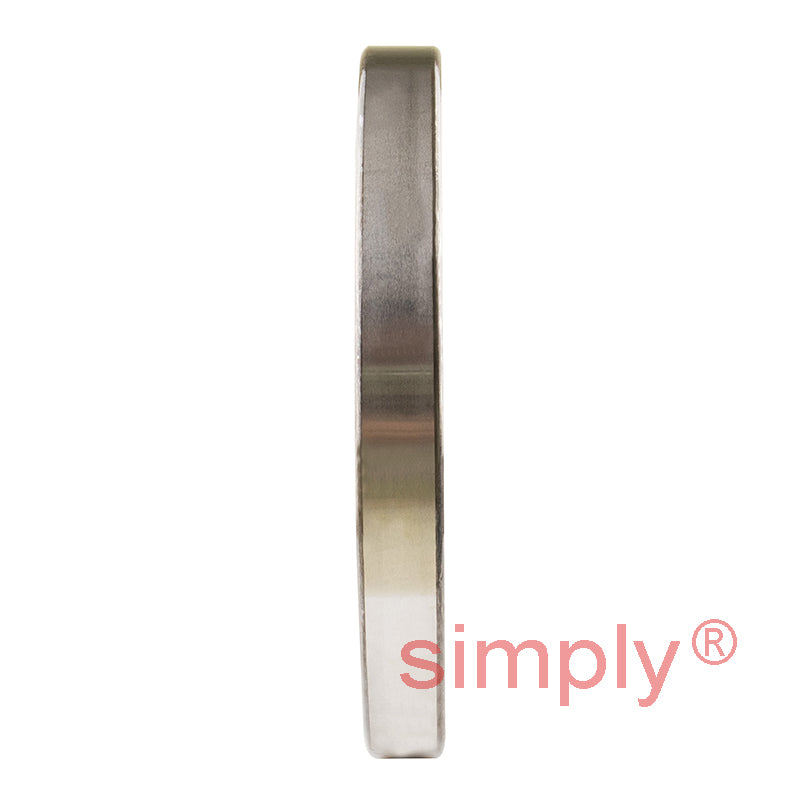

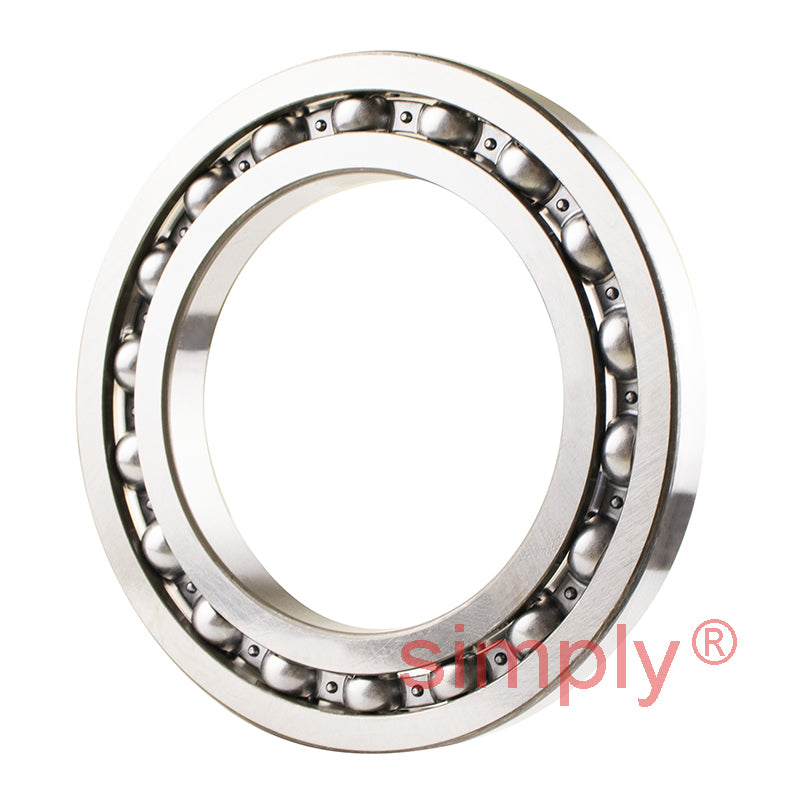

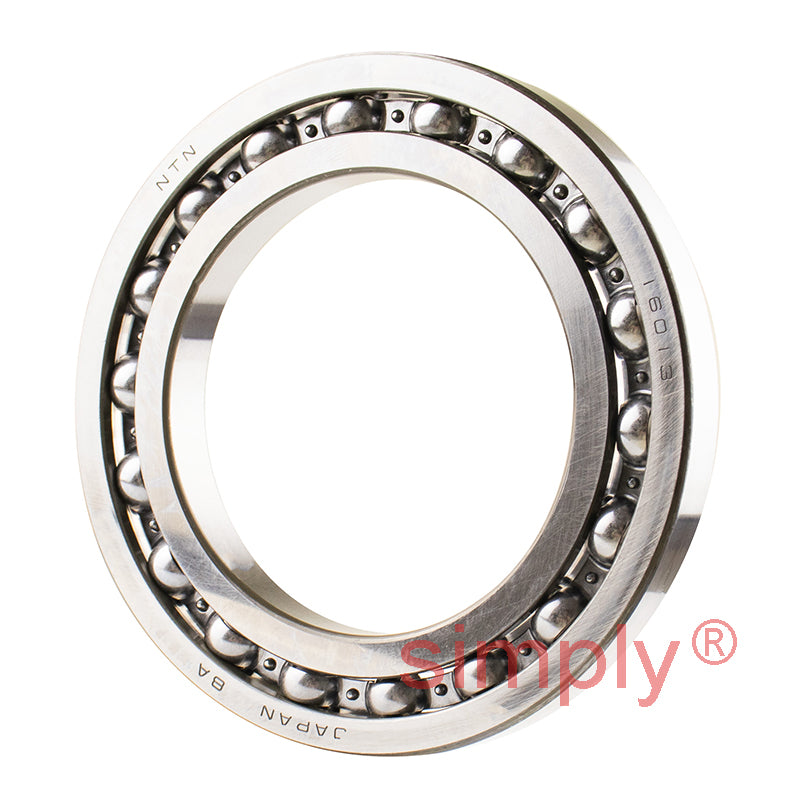

NTN 16013 Open Type Deep Groove Ball Bearing 65x100x11mm

NTN 16013 Open Type Deep Groove Ball Bearing 65x100x11mm
$38.11 ex VAT
$38.11 ex VAT
Sale Sold out

Equivalent to: 16013CM ELN65 ELLN65

In stock

Price Break
3+ $25.53
5+ $24.09
10+ $23.80
25+ $23.52
49+ $23.23
74+ $22.94
99+ $21.51
199+ $21.22
249+ $20.94
499+ $20.65
999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
11mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 65mm
D 100mm
B 11mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 22.7 kN
C<sub>or</sub> 18.7 kN
C<sub>u</sub> 1.26 kN
f<sub>0</sub> 16.5 kN
Grease 6500 rpm
Oil 7700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 69mm
D<sub>a</sub> Max. 96mm
r<sub>as</sub> Max. 0.6mm
Weight 0.307 kg
