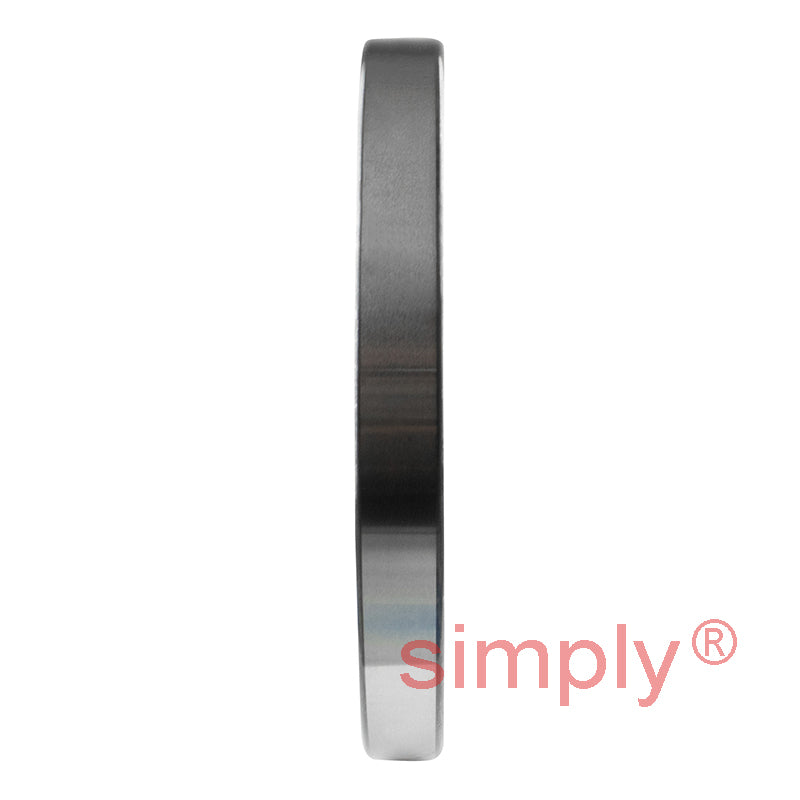

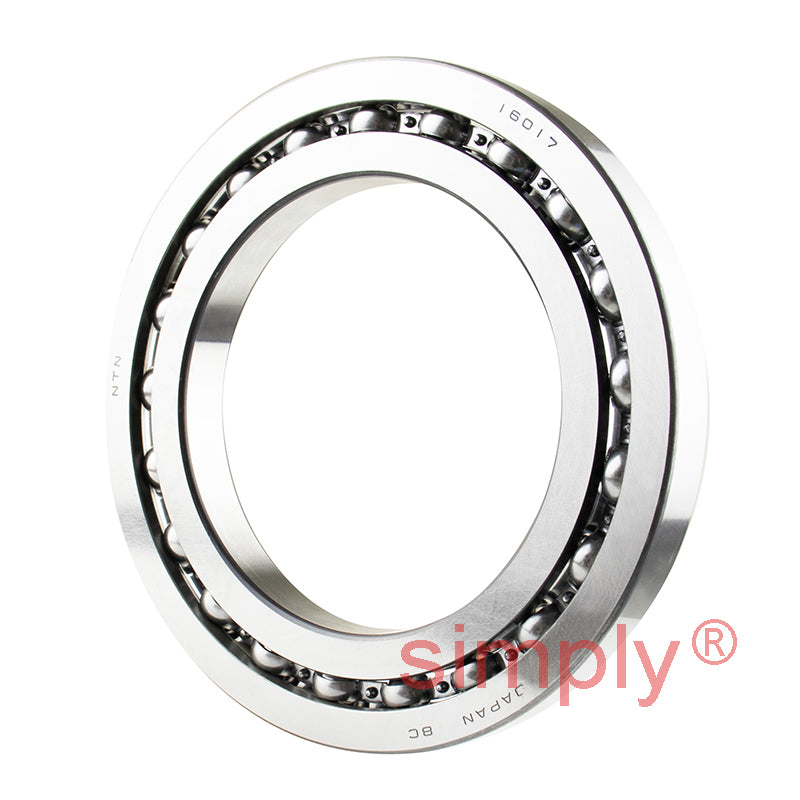

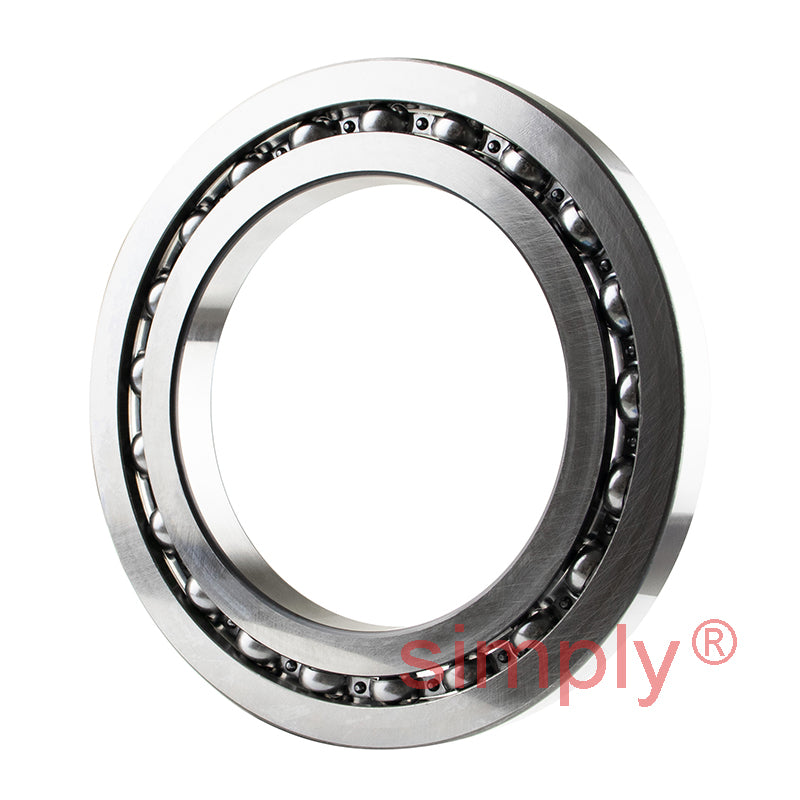

• NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
  • NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
  • NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
  • NTN
1 4

SKU: 16017-NTN

NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm

NTN 16017 Open Type Deep Groove Ball Bearing 85x130x14mm
$58.04 ex VAT
$58.04 ex VAT
Sale Sold out

Equivalent to: 16017CM EL85 ELL85

In stock

Price Break
3+ $38.88
5+ $36.69
10+ $36.25
25+ $35.82
49+ $35.38
74+ $34.94
99+ $32.76
199+ $32.32
249+ $31.89
499+ $31.45
999+ $30.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
130mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 85mm
D 130mm
B 14mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 28.7 kN
C<sub>or</sub> 26.2 kN
C<sub>u</sub> 1.68 kN
f<sub>0</sub> 16.4 kN
Grease 5000 rpm
Oil 5900 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 89mm
D<sub>a</sub> Max. 126mm
r<sub>as</sub> Max. 0.6mm
Weight 0.626 kg
