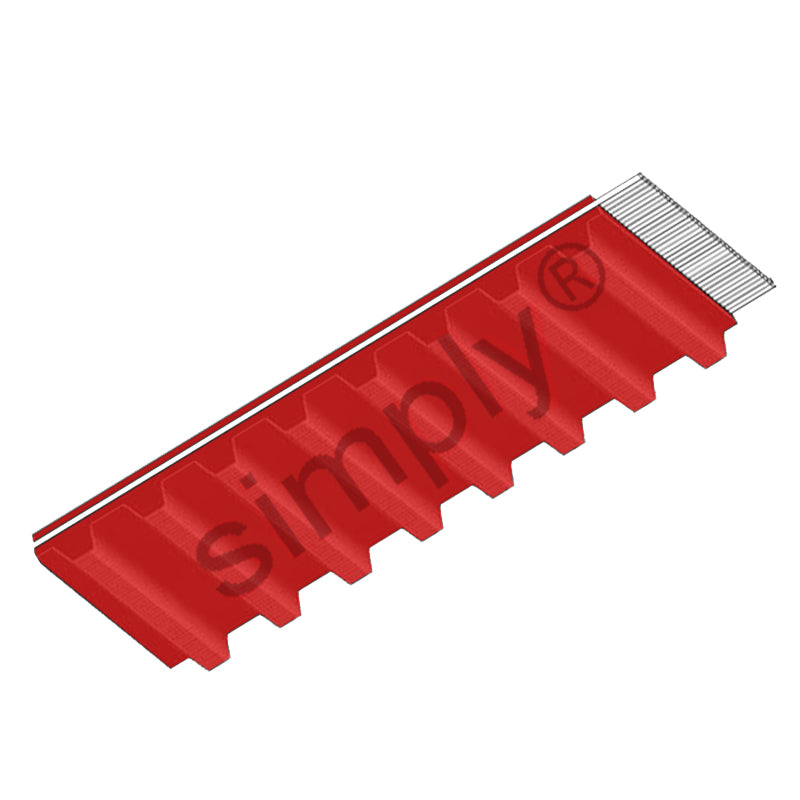

16AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 45 Teeth

SKU: 16AT5/225/G3

16AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 45 Teeth

$33.91 ex VAT
$33.91
ex VAT
Not in stock

Quantity Price Breaks

3 $30.18
5 $28.48
10 $28.15
15 $27.81
20 $27.47
30 $27.13
40 $25.43
50 $25.09
60 $24.75
75 $24.42
100 $23.74
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
16AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 45 Teeth
SKU: 16AT5/225/G3

16AT5/225/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 45 Teeth

$33.91 ex VAT
$33.91
ex VAT

Description

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 45
Belt Width = 16mm
Belt Pitch = 5mm (AT5)
Belt Length = 225mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 1342 N
Belt Weight (per metre) = 0.058kg
