16AT5/780/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 156 Teeth

SKU: 16AT5/780/G3

16AT5/780/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 156 Teeth

$57.94 ex VAT
$57.94
ex VAT
Not in stock

Quantity Price Breaks

3 $51.57
5 $48.67
10 $48.09
15 $47.51
20 $46.93
30 $46.35
40 $43.46
50 $42.88
60 $42.30
75 $41.72
100 $40.56
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
16AT5/780/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 156 Teeth
SKU: 16AT5/780/G3

16AT5/780/G3 ContiTech Gen III Synchroflex Timing Belt 16mm Width 5mm Pitch 156 Teeth

$57.94 ex VAT
$57.94
ex VAT

Description

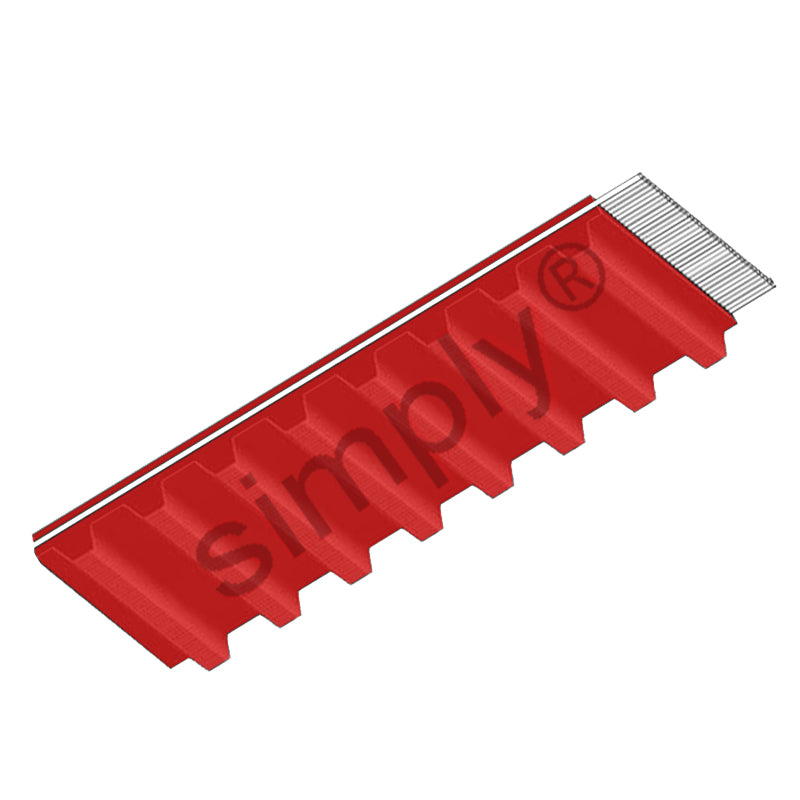

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 156
Belt Width = 16mm
Belt Pitch = 5mm (AT5)
Belt Length = 780mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 1342 N
Belt Weight (per metre) = 0.058kg
