SKU: 16B-1-NO30-MB
Branded 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $9.43 ex VAT
- Sale price
- $9.43
- Regular price
-
In stock
Quantity Price Breaks
2
$8.39
5
$7.92
10
$7.83
29
$7.73
49
$7.64
75
$7.54
100
$7.07
200
$6.98
250
$6.88
500
$6.79
1000
$6.60
SKU:
16B-1-NO30-MB
Branded 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $9.43 ex VAT
- Sale price
- $9.43
- Regular price
-
Description

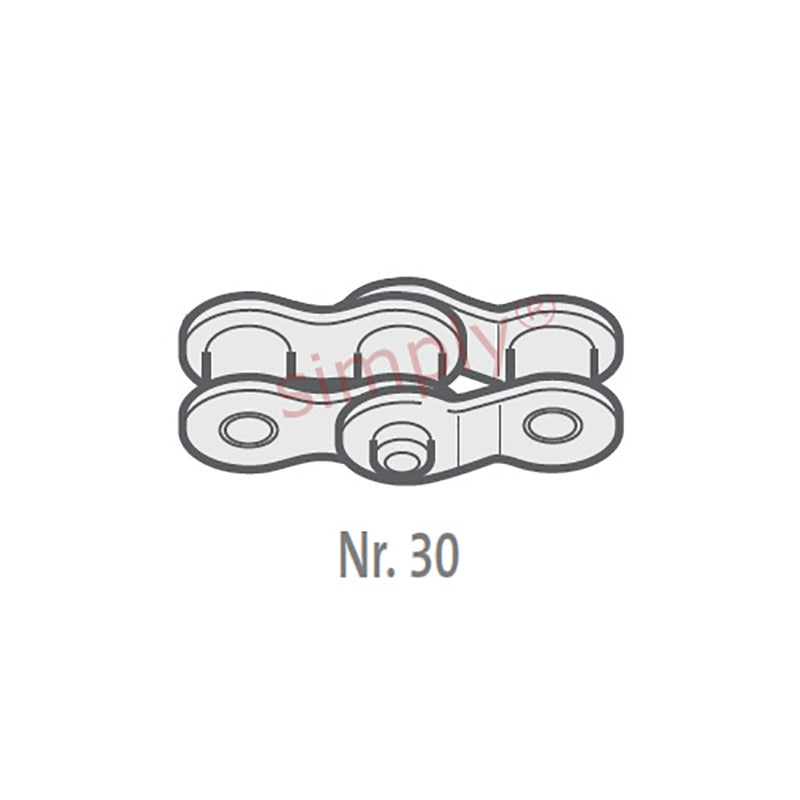

Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 36mm |
| Connecting Link Extension max (J) | = | 1.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.067kg/m |
