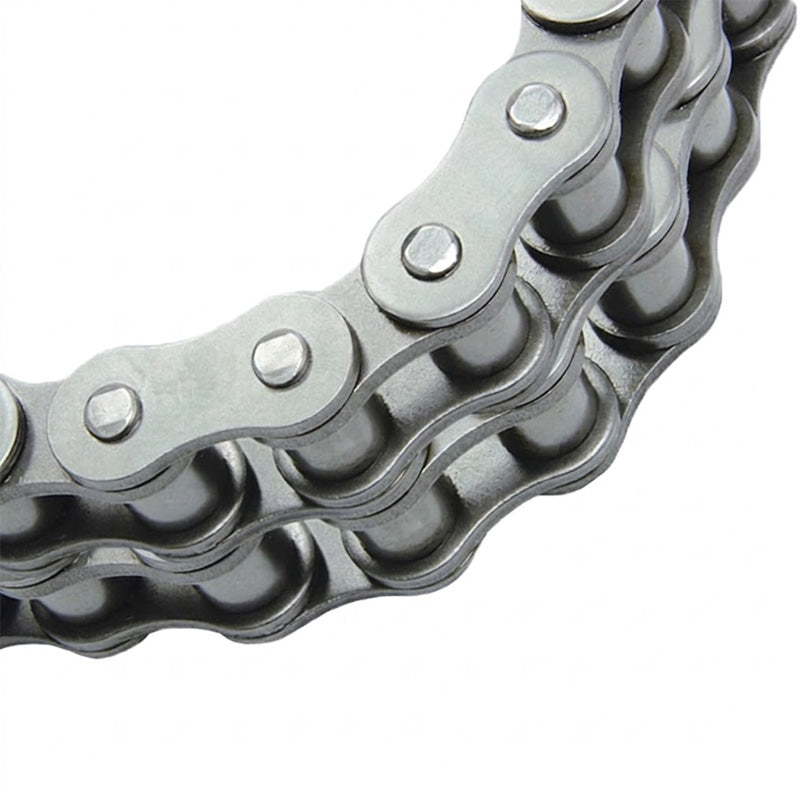

• Branded 16B-2 BS Duplex Roller Chain 1 inch Pitch 5 Metres
1 1

SKU: 16B-2-5MTR-MB

Branded 16B-2 BS Duplex Roller Chain 1 inch Pitch 5 Metres

Branded 16B-2 BS Duplex Roller Chain 1 inch Pitch 5 Metres
$191.00 ex VAT
$191.00 ex VAT
Sale Sold out

In stock

Price Break
2+ $127.93
5+ $120.75
10+ $119.31
29+ $117.87
49+ $116.43
75+ $115.00
100+ $107.81
200+ $106.37
250+ $104.93
500+ $103.50
1000+ $100.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (P) 25.4mm = 1 inch
Roller Diameter (D1 max) 15.88mm
Width between inner plates (B1 min) 17.02mm
Pin dia meter (D2 max) 8.28
mmPin length (L max) 68mm
Pin length (Lc max) 69.3mm
Inner plate depth (H2 max) 21mm
Plate thickness (T max) 4.15/3.1mm
Ultimate tensile strength (Q min) kN/LB 106.0/24091
Average tensile strength (Q0) kN 133
Transverse pitch (Pt) mm 31.88
Weight per meter (q) kg/m 5.42
