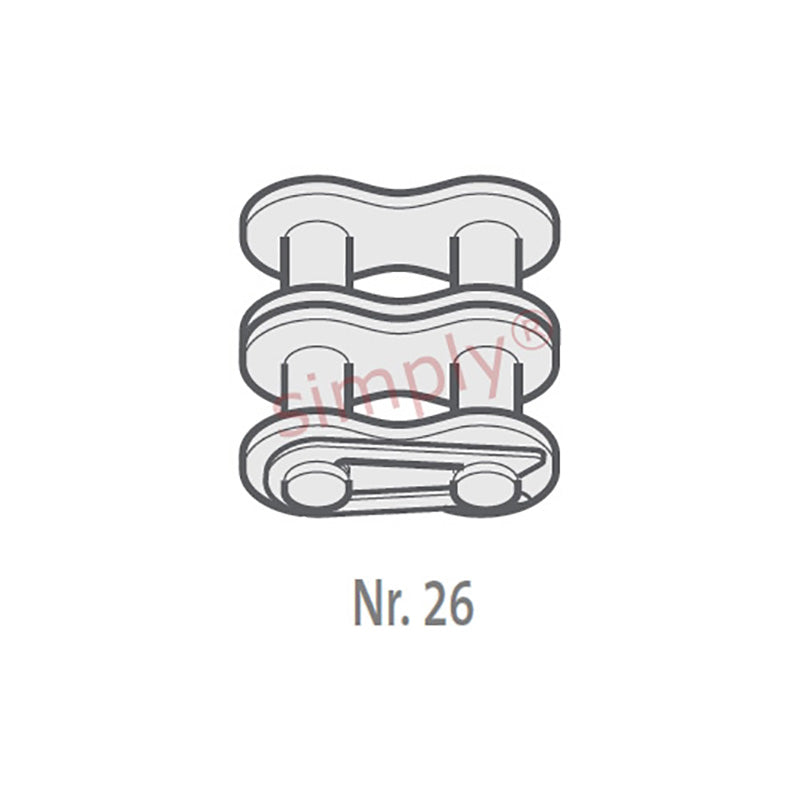

• Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
  • Renold
1 2

SKU: 16B-2-BB-NO26-RENOLD

Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch

Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
$30.17 ex VAT
$30.17 ex VAT
Sale Sold out

In stock

Price Break
2+ $20.21
5+ $19.07
10+ $18.85
29+ $18.62
49+ $18.39
75+ $18.16
100+ $17.03
200+ $16.80
250+ $16.57
500+ $16.35
1000+ $15.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 17.02mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 21.08mm
Plate Width Inner max (E) 3.76mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 8.28mm
Pin Length max (H1) 66.8mm
Connecting Link Extension max (J) 2.2mm
ISO606 Tensile Strength min 106000 N
Weight 0.046kg/m
