SKU: 16B-2-NO30-MB
Branded 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $15.14 ex VAT
- Sale price
- $15.14
- Regular price
-
In stock
Quantity Price Breaks
2
$13.47
5
$12.72
10
$12.57
29
$12.41
49
$12.26
75
$12.11
100
$11.36
200
$11.20
250
$11.05
500
$10.90
1000
$10.60
SKU:
16B-2-NO30-MB
Branded 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $15.14 ex VAT
- Sale price
- $15.14
- Regular price
-
Description

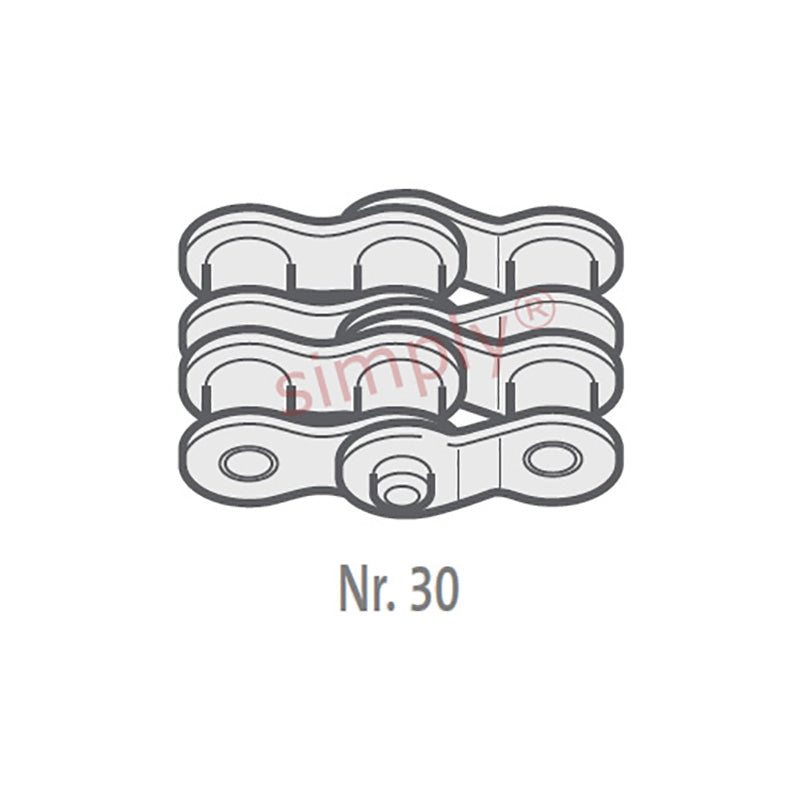

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.2mm |
| Pin Length max (H2) | = | 67.5mm |
| Connecting Link Extension max (J) | = | 1.59999999999999mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
