SKU: 16B-2-SD-10FT-RENOLD

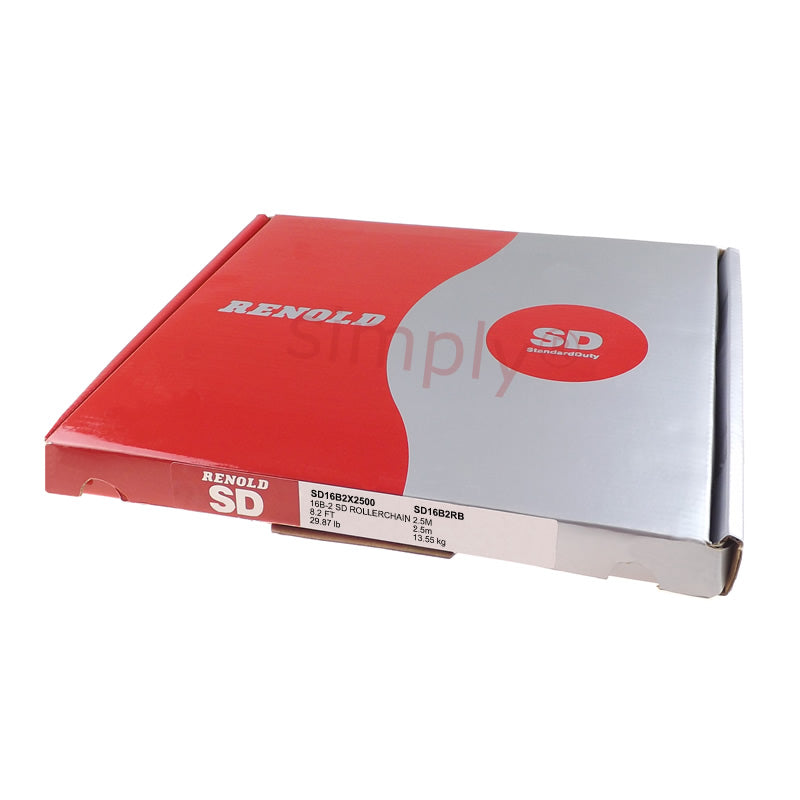

Renold Standard Duty 16B-2 BS Duplex Roller Chain 1 inch Pitch - 10 Feet Length - Allow 2-3 Days
Renold Standard Duty 16B-2 BS Duplex Roller Chain 1 inch Pitch - 10 Feet Length - Allow 2-3 Days
Regular price
$156.36
ex VAT
Regular price
Sale price
$156.36
ex VAT
Equivalent to: SD16B-2
Low stock
Price Break
2+
$116.50
10+
$111.80
20+
$109.44
30+
$105.91
40+
$103.56
50+
$97.67
60+
$82.38
70+
$0.00
80+
$0.00
90+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.2mm |
| Pin Length max (H2) | 67.5mm |
| Connecting link extension max (J) | 1.59999999999999mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile strength min | 106000 N |
| Weight | 5.42 kg/m |
